SNMG 543-M:T9335
SNMG 543-M:T9335

SNMG 543-M:T9335

UGC DOR6754939
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.61 CAD - $21.61 CAD
$21.61 CAD
$21.61 CAD - $21.61 CAD
$21.61 CAD

Vendu en lots de : 10

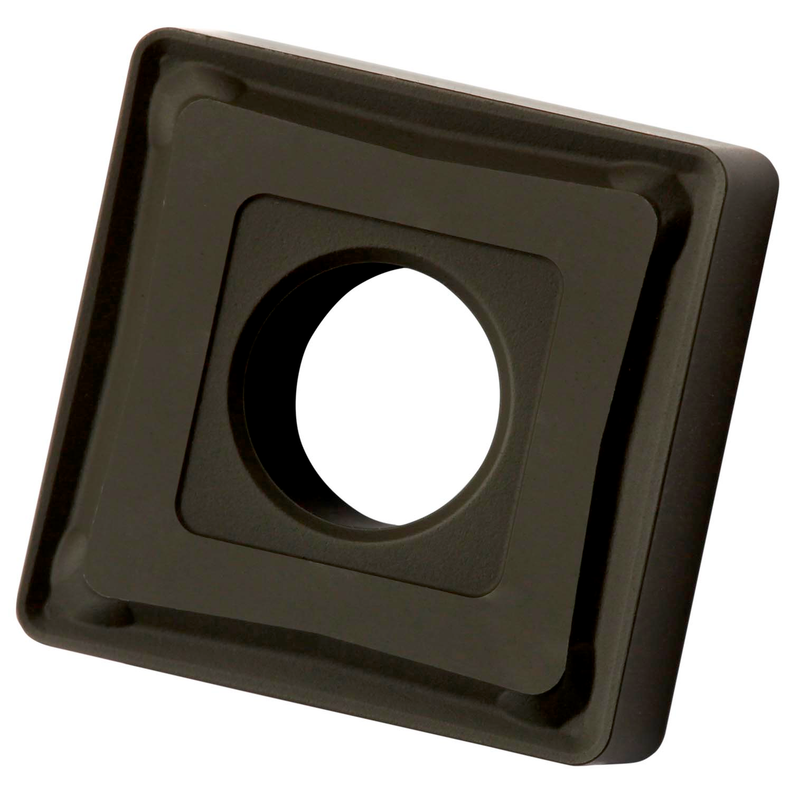

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20-P45, pour l'usinage léger à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 543-M:T9335
Product Name (ISO)SNMG 150612E-M:T9335
GradeT9335
Chipbreaker (CBMD)M
Product Number6754939
Product FamilySNMG
Insert Geometry
Insert DesignGNSM
Insert Shape Code (SC)C - carré

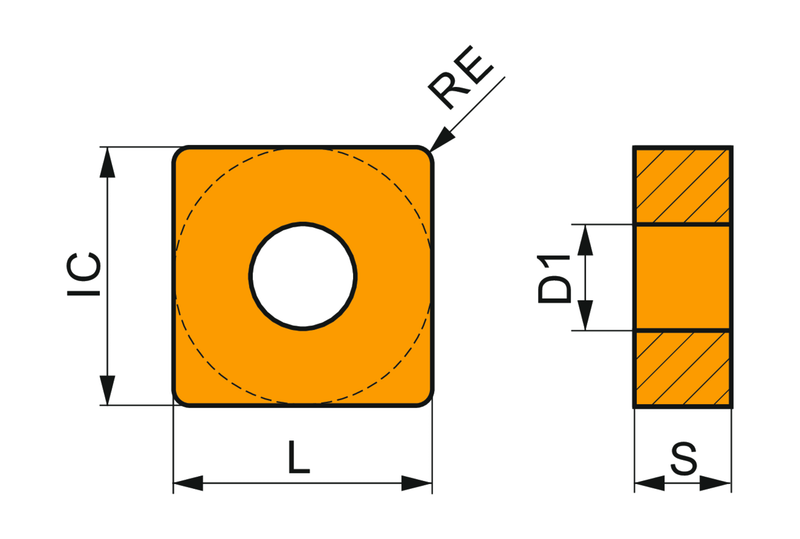

Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6754939
EAN3603602903051
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
SNMG 543-M:T9335 — Line Drawing PDF Download
