SNMM 643-OR:T9335
SNMM 643-OR:T9335

SNMM 643-OR:T9335

UGC DOR6754953
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.26 CAD - $29.26 CAD
$29.26 CAD
$29.26 CAD - $29.26 CAD
$29.26 CAD

Vendu en lots de : 10

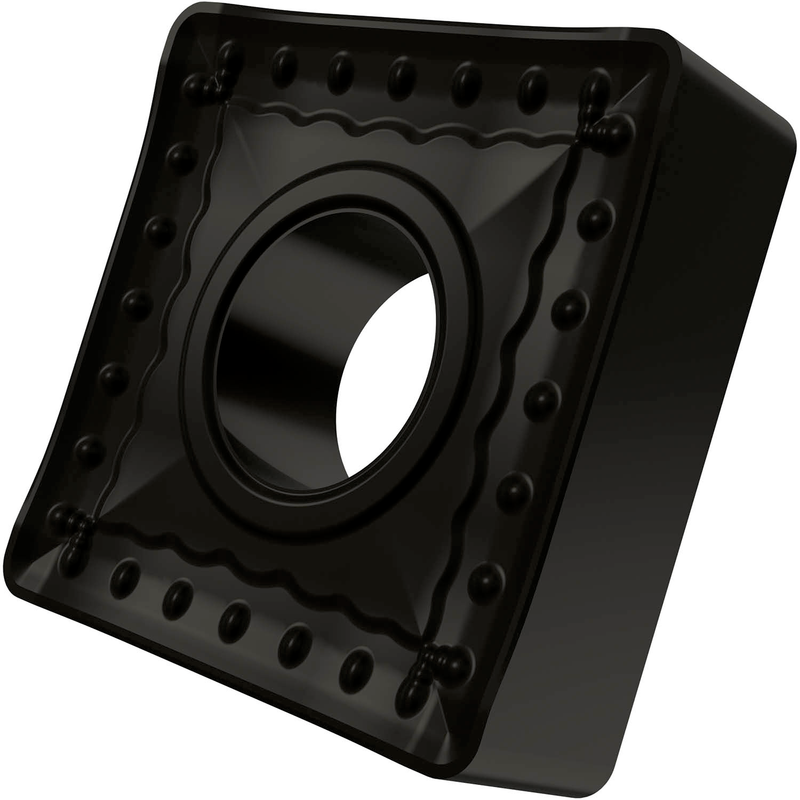

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20 - P45, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 643-OR:T9335
Product Name (ISO)SNMM 190612E-OR:T9335
GradeT9335
Chipbreaker (CBMD)OU_
Product Number6754953
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6754953
EAN3603602903198
File Type Download
SNMM 643-OR:T9335 — Line Drawing PDF Download
