SNMM 866-OU:T9335
SNMM 866-OU:T9335

SNMM 866-OU:T9335

UGC DOR6754968
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.00 CAD - $60.00 CAD
$60.00 CAD
$60.00 CAD - $60.00 CAD
$60.00 CAD

Vendu en lots de : 10

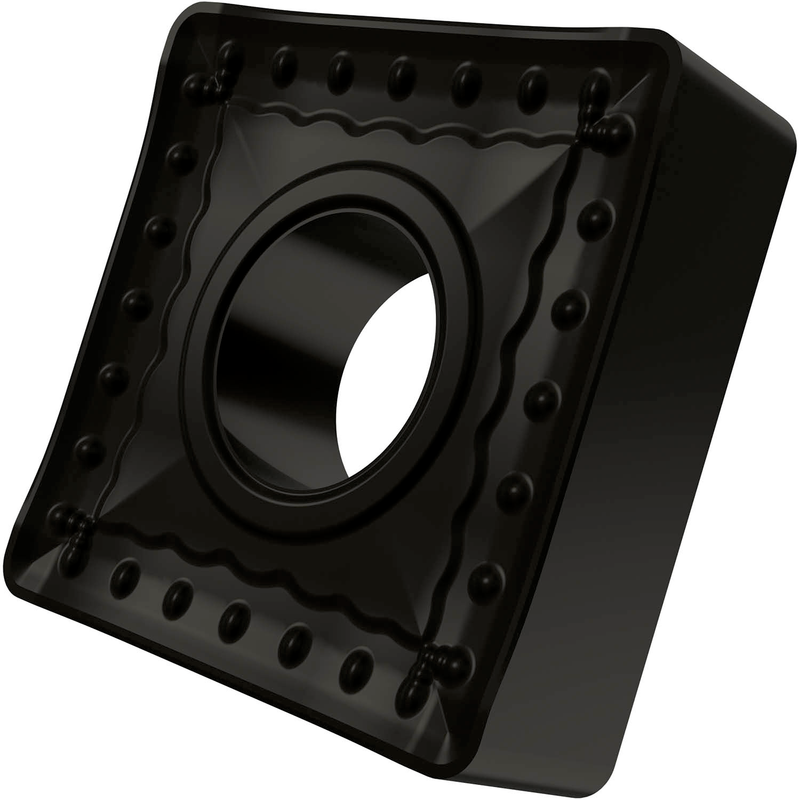

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 1", 3/8" d'épaisseur, rayon de bec de 3/32" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20 - P45, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 866-OR:T9335
Product Name (ISO)SNMM 250924E-OR:T9335
GradeT9335
Chipbreaker (CBMD)OU_
Product Number6754968
Product FamilySNMM
Insert Geometry
Insert DesignSMNM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6754968
EAN3603602903341
File Type Download
SNMM 866-OU:T9335 — Line Drawing PDF Download
