SNMX 251224S-SR:T9335
SNMX 251224S-SR:T9335

SNMX 251224S-SR:T9335

UGC DOR6754972
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$73.57 CAD - $73.57 CAD
$73.57 CAD
$73.57 CAD - $73.57 CAD
$73.57 CAD

Vendu en lots de : 10

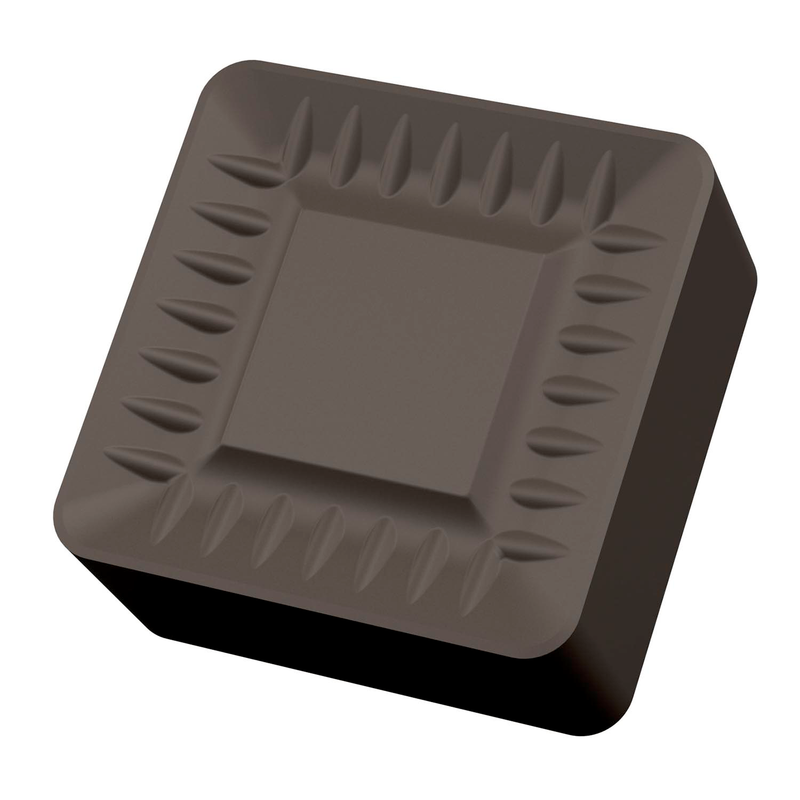

Plaquette spéciale négative pour tournage, carrée avec diamètre de cercle inscrit de 25,4 mm, 12 mm d'épaisseur, rayon de bec de 2,4 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SR avec arêtes de coupe arrondies avec facette, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 251224S-SR:T9335
GradeT9335
Chipbreaker (CBMD)SR
Product Number6754972
Product FamilySNMX
Insert Geometry
Insert DesignSNMX
Insert Shape Code (SC)C - carré

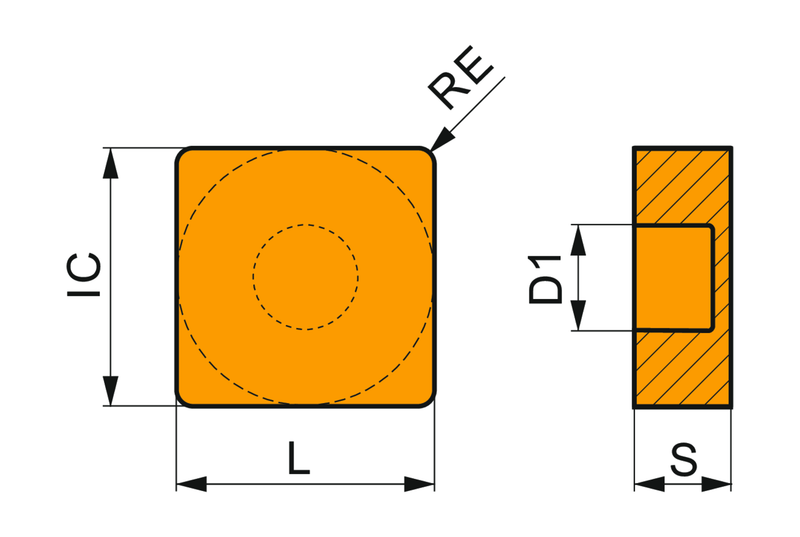

Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6754972
EAN3603602903389
File Type Download
SNMX 251224S-SR:T9335 — Line Drawing PDF Download
