SPMR 421-48:T9335
SPMR 421-48:T9335

SPMR 421-48:T9335

UGC DOR6754973
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.64 CAD - $16.64 CAD
$16.64 CAD
$16.64 CAD - $16.64 CAD
$16.64 CAD

Vendu en lots de : 10

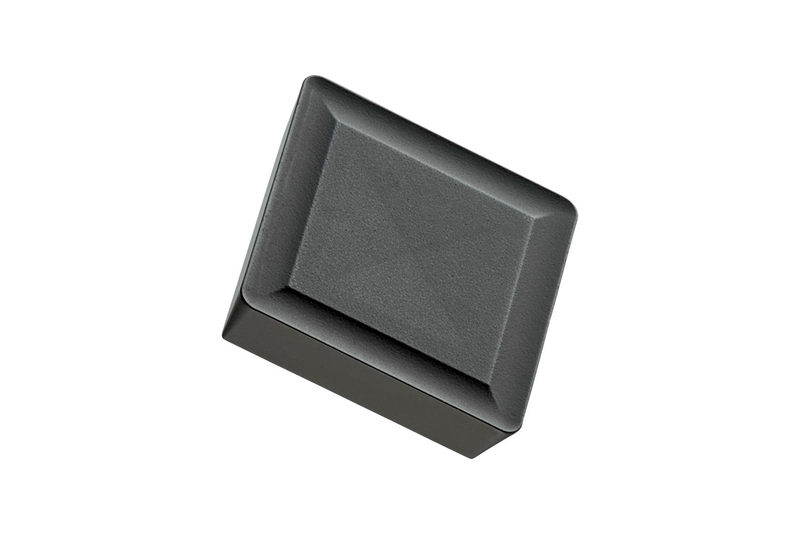

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 11°, diamètre du cercle inscrit de 1/2", épaisseur de 1/8", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux 48, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SPMR 421-48:T9335
Product Name (ISO)SPMR 120304E-48:T9335
GradeT9335
Chipbreaker (CBMD)48
Product Number6754973
Product FamilySPMR

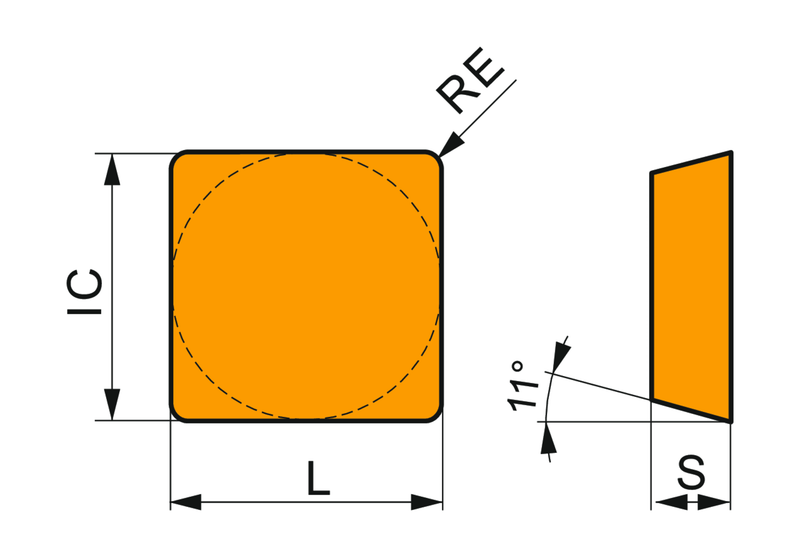

Insert Geometry
Insert DesignSPMR
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6754973
EAN3603602903396
File Type Download
SPMR 421-48:T9335 — Line Drawing PDF Download
