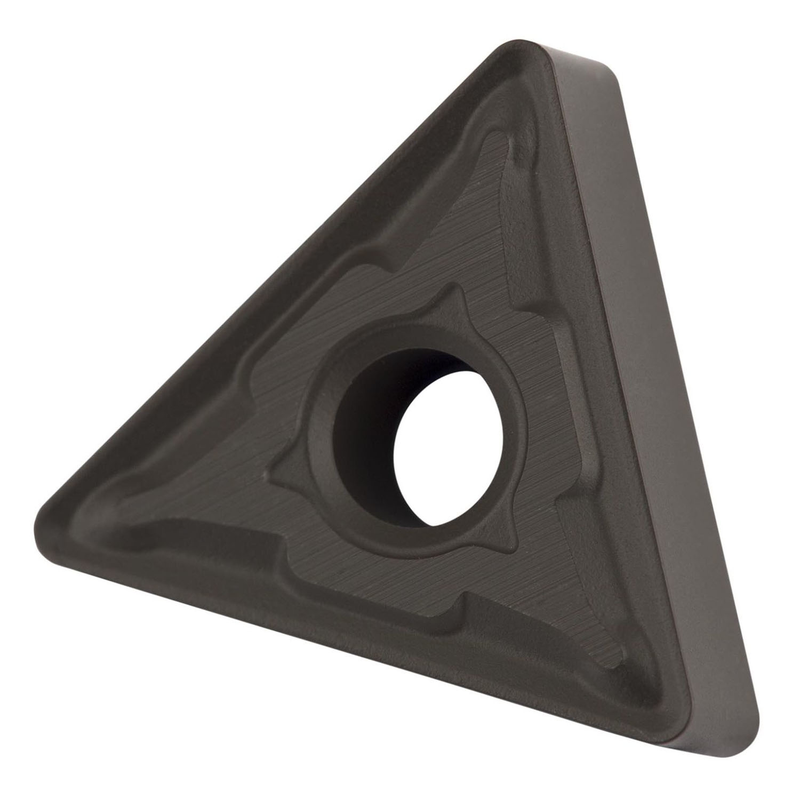

TNMG 332-M:T9335
TNMG 332-M:T9335

TNMG 332-M:T9335

UGC DOR6754977
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux M, en nuance T9335, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD, dans la plage ISO P20-P45, pour l'usinage léger à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-M:T9335
Product Name (ISO)TNMG 160408E-M:T9335
GradeT9335
Chipbreaker (CBMD)M
Product Number6754977
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6754977
EAN3603602903433
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
TNMG 332-M:T9335 — Line Drawing PDF Download
