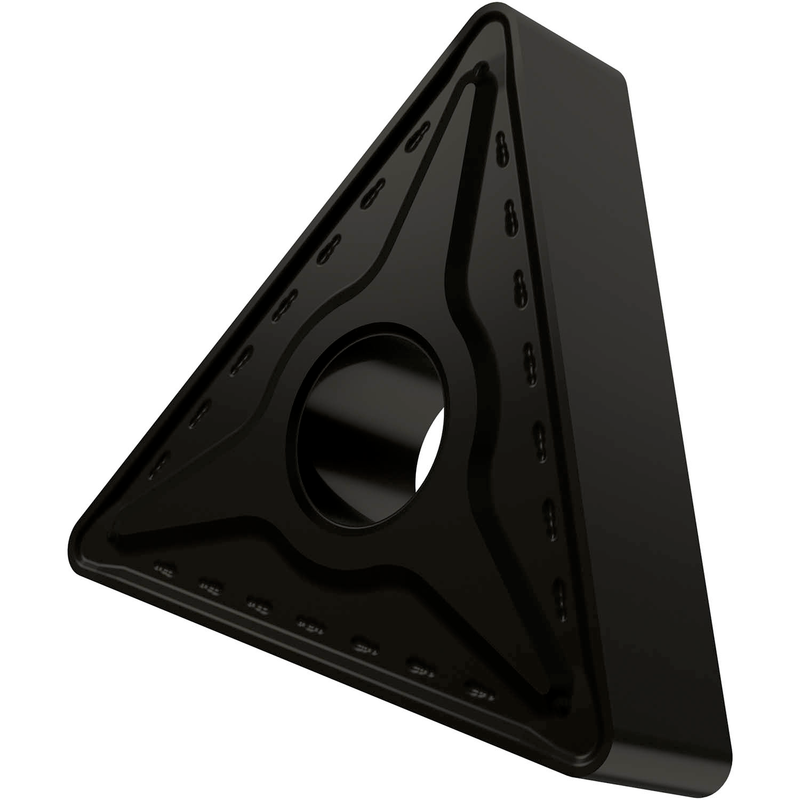

TNMG 666-RM:T9335
TNMG 666-RM:T9335

TNMG 666-RM:T9335

UGC DOR6754990
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.50 CAD - $39.50 CAD
$39.50 CAD
$39.50 CAD - $39.50 CAD
$39.50 CAD

Vendu en lots de : 5

Plaquette négative double face, triangulaire, avec un diamètre du cercle inscrit de 3/4", une épaisseur de 3/8", un rayon de bec de 3/32" et une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans les plages ISO P20 - P45 et M15 - M40, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 666-RM:T9335
Product Name (ISO)TNMG 330924E-RM:T9335
GradeT9335
Chipbreaker (CBMD)RM
Product Number6754990
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.429"
Depth of Cut Max — mm (APMX)10.9 mm
Tool Information
Reference Numbers
EDP Number6754990
EAN3603602903563
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
