TNMM 433L:T9335
TNMM 433L:T9335

TNMM 433L:T9335

UGC DOR6754994
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.61 CAD - $15.61 CAD
$15.61 CAD
$15.61 CAD - $15.61 CAD
$15.61 CAD

Vendu en lots de : 10

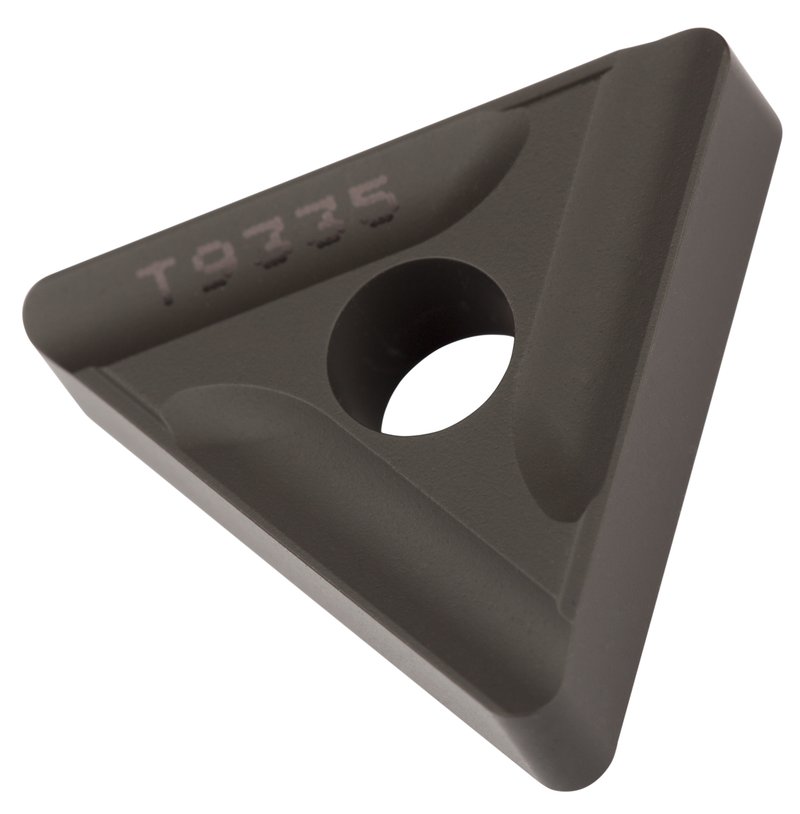

Plaquette négative double face, triangulaire, avec un diamètre de cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 3/64" et une précision d'indexage selon la classe de tolérance ISO M, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans les plages ISO P20 - P45 et M15 - M40, pour l'usinage moyen à lourd des aciers et des aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMM 433L:T9335
Product Name (ISO)TNMM 220412EL:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6754994
Product FamilyTNMM

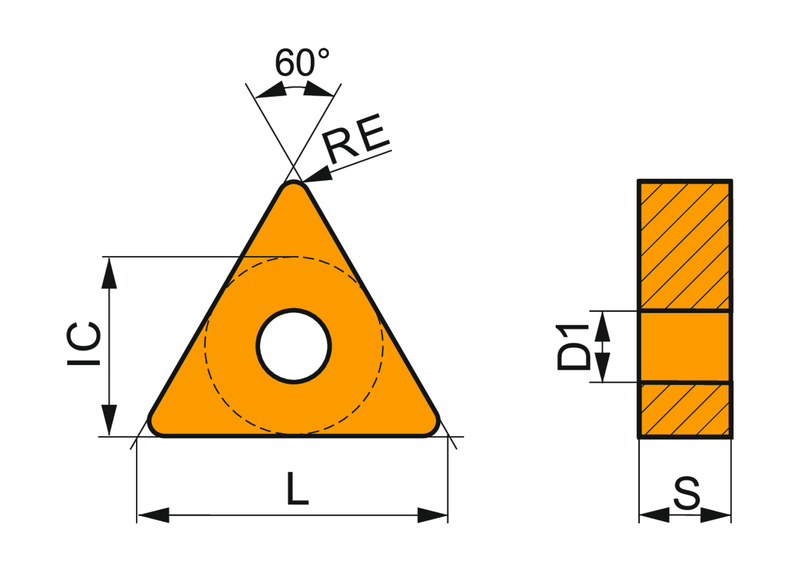

Insert Geometry
Insert DesignTNMM
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6754994
EAN3603602903600
File Type Download
TNMM 433L:T9335 — Line Drawing PDF Download
