TNMM 433-OR:T9335
TNMM 433-OR:T9335

TNMM 433-OR:T9335

UGC DOR6754995
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.04 CAD - $16.04 CAD
$16.04 CAD
$16.04 CAD - $16.04 CAD
$16.04 CAD

Vendu en lots de : 10

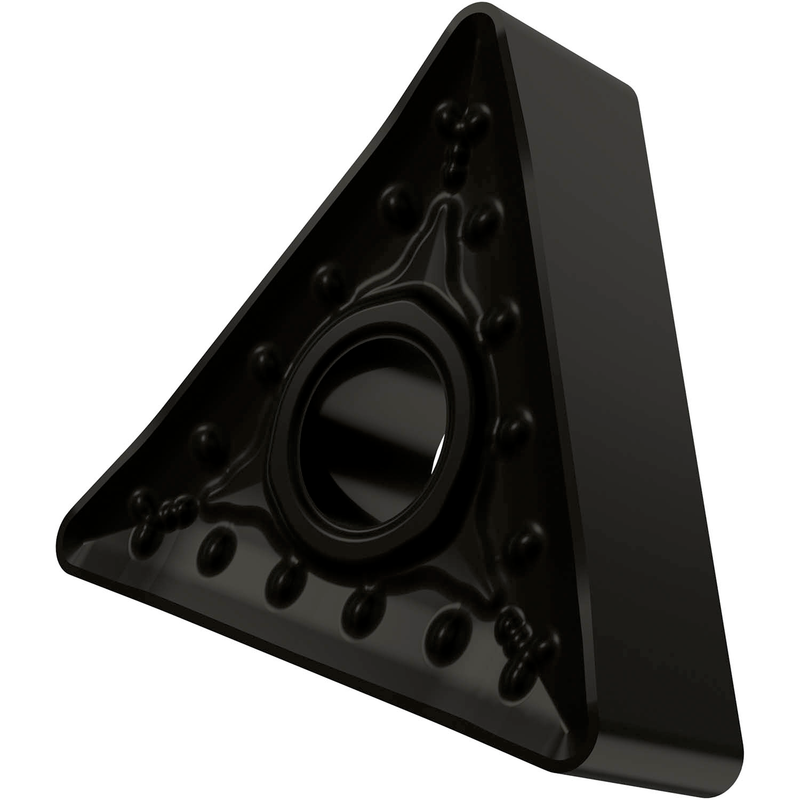

Plaquette de tournage négative double face, triangulaire avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20 - P45, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMM 433-OR:T9335
Product Name (ISO)TNMM 220412E-OR:T9335
GradeT9335
Chipbreaker (CBMD)OU
Product Number6754995
Product FamilyNMNT

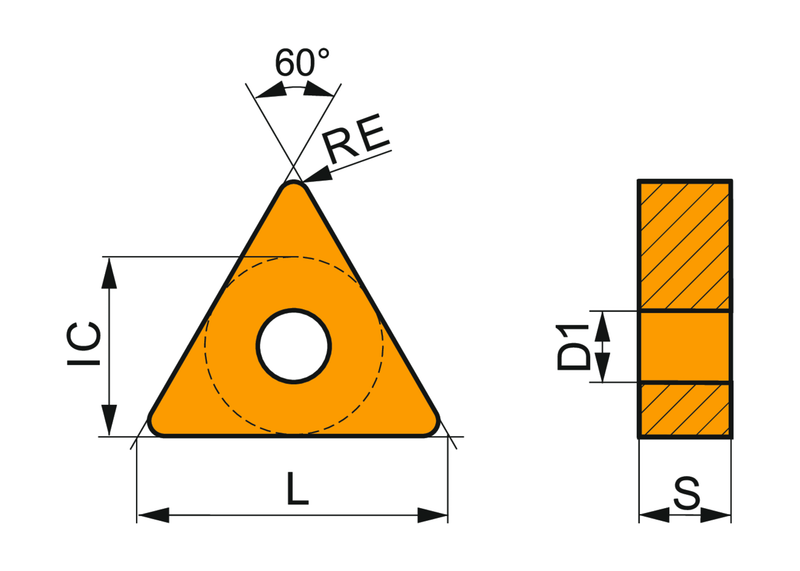

Insert Geometry
Insert DesignTMNM
Insert Shape Code (SC)T - angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6754995
EAN3603602903617
File Type Download
TNMM 433-OR:T9335 — Line Drawing PDF Download
