TPMR 221-46:T9335
TPMR 221-46:T9335

TPMR 221-46:T9335

UGC DOR6755002
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.47 CAD - $10.47 CAD
$10.47 CAD
$10.47 CAD - $10.47 CAD
$10.47 CAD

Vendu en lots de : 10

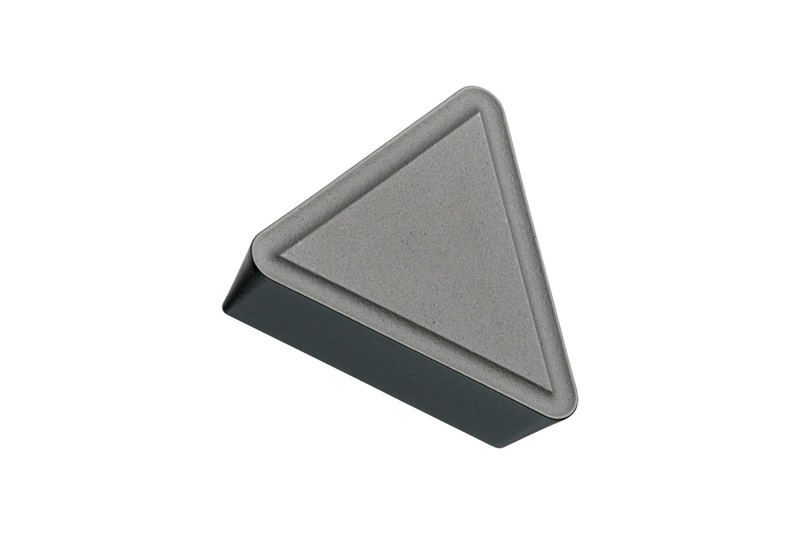

Plaquette de tournage positive simple face, triangulaire avec dépouille de 11°, diamètre du cercle inscrit de 1/4", épaisseur de 1/8", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux 46, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20-P45, pour l'usinage de finition à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TPMR 221-46:T9335
Product Name (ISO)TPMR 110304E-46:T9335
GradeT9335
Chipbreaker (CBMD)46
Product Number6755002
Product FamilyTPMR

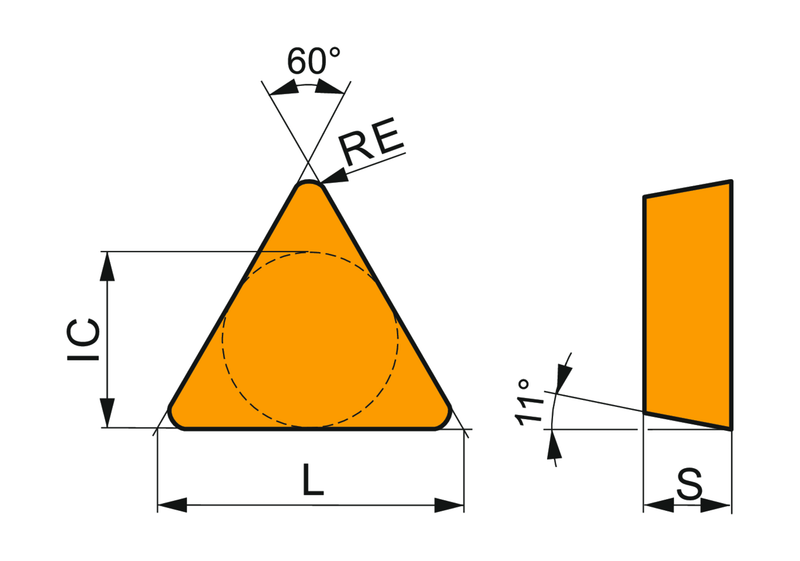

Insert Geometry
Insert DesignTPMR
Insert Shape Code (SC)T - angulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755002
EAN3603602903686
File Type Download
TPMR 221-46:T9335 — Line Drawing PDF Download
