WNMM 432-OR:T9335
WNMM 432-OR:T9335

WNMM 432-OR:T9335

UGC DOR6755021
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

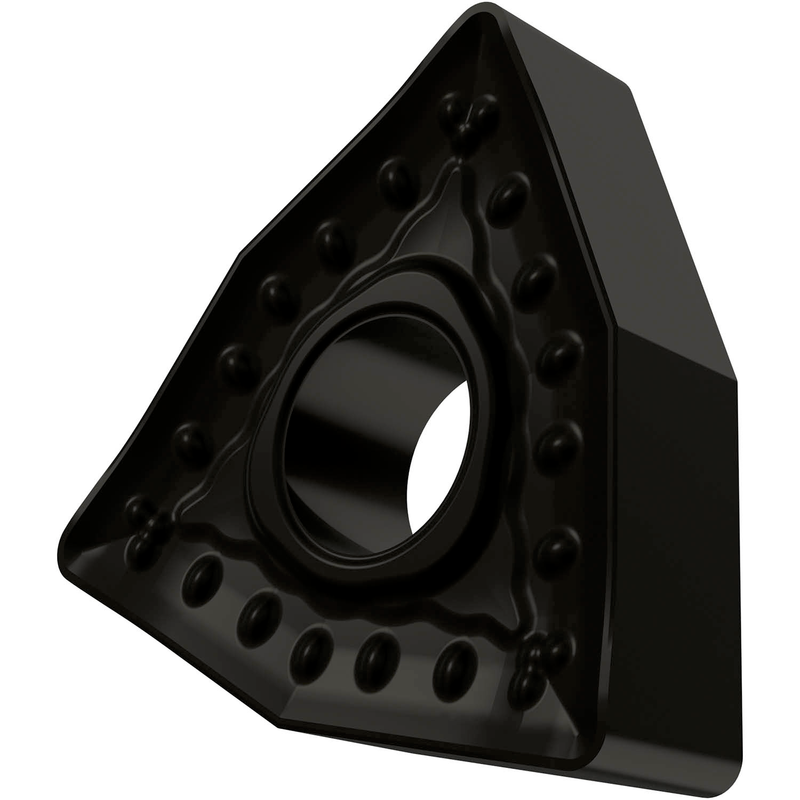

Plaquette négative double face, trigon 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux OR, en nuance T9335, un carbure WC-Co à gradient de fonction MT-CVD revêtu dans la plage ISO P20 - P45, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMM 432-OR:T9335
Product Name (ISO)WNMM 080408E-OR:T9335
GradeT9335
Chipbreaker (CBMD)OU_
Product Number6755021
Product FamilyWNMM

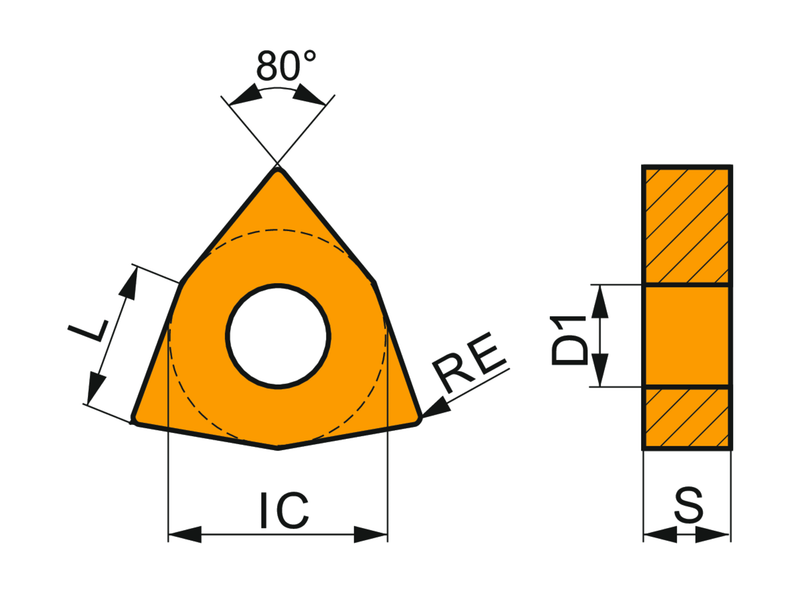

Insert Geometry
Insert DesignWNMM
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6755021
EAN3603602903877
File Type Download
WNMM 432-OR:T9335 — Line Drawing PDF Download
