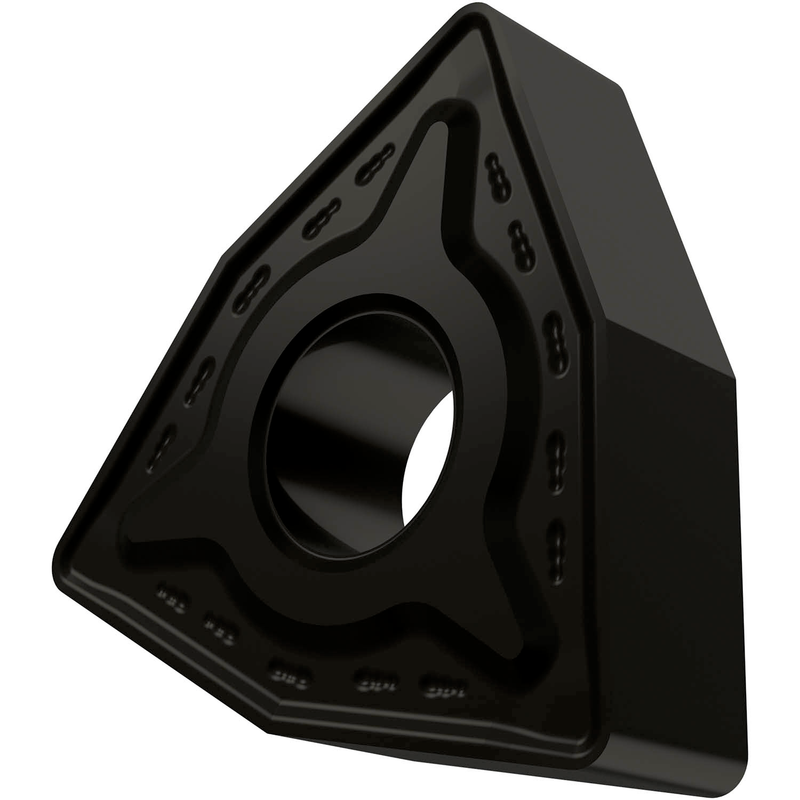

WNMG 432-RM:T9310
WNMG 432-RM:T9310

WNMG 432-RM:T9310

UGC DOR6755071
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9310, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P01-P15, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 432-RM:T9310
Product Name (ISO)WNMG 080408E-RM:T9310
GradeT9310
Chipbreaker (CBMD)RM
Product Number6755071
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6755071
EAN3603602904379
File Type Download
WNMG 432-RM:T9310 — Line Drawing PDF Download
