TN 16ER140UN:T8030
TN 16ER140UN:T8030

TN 16ER140UN:T8030

UGC DOR6755286
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.80 CAD - $31.80 CAD
$31.80 CAD
$31.80 CAD - $31.80 CAD
$31.80 CAD

Vendu en lots de : 5

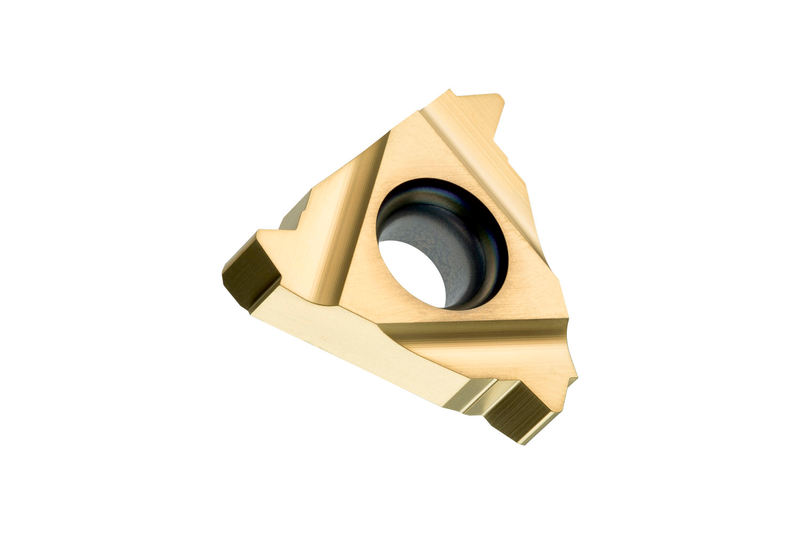

Insert de filetage simple face, triangulaire avec un diamètre de cercle inscrit de 0,375", pour le filetage externe droit de filets UN avec 14TPI, en carbure WC-Co à grains fins revêtu PVD T8030 dans les gammes de classes ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16ER140UN:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755286
Product FamilyTN ONU EXT
Insert Geometry
Insert DesignTN UN EXT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Threading
Threads per Inch (TPI)14.0
Tool Information
Reference Numbers
EDP Number6755286
EAN3603602906526
File Type Download

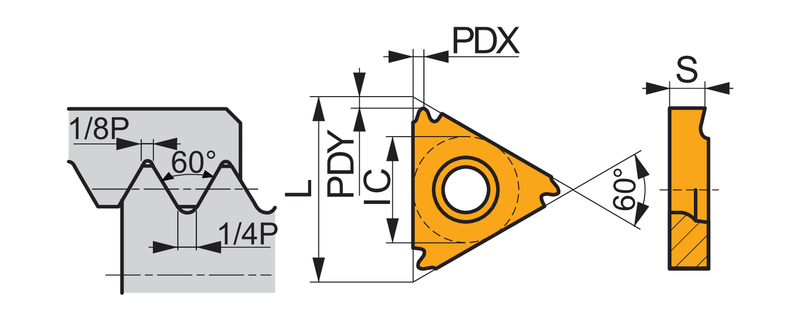

TN 16ER140UN:T8030 — Line Drawing PDF Download
