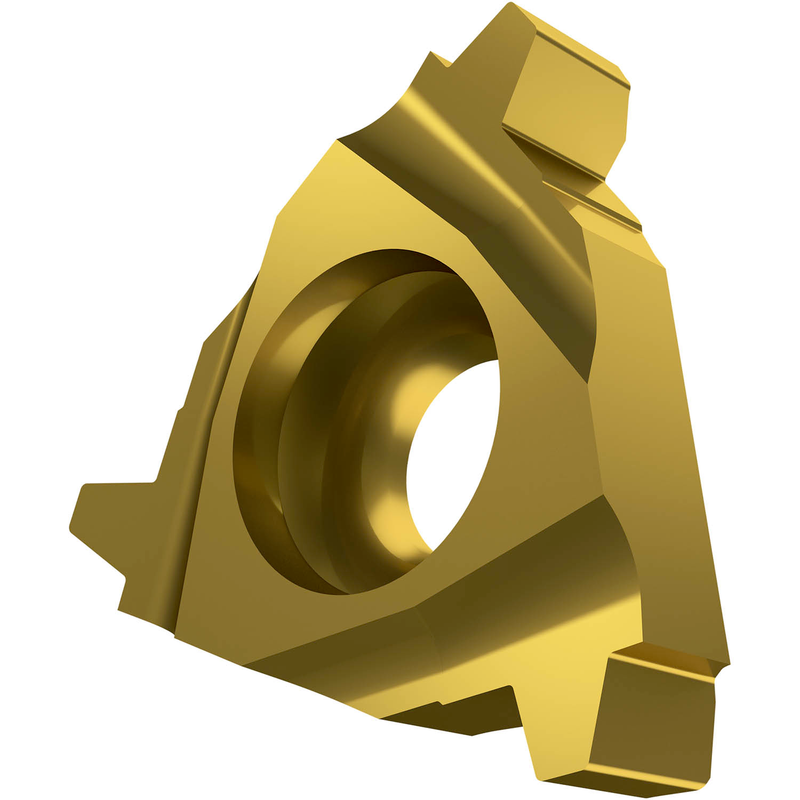

TN 16ER150TR:T8030
TN 16ER150TR:T8030

TN 16ER150TR:T8030

UGC DOR6755330
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.76 CAD - $34.76 CAD
$34.76 CAD
$34.76 CAD - $34.76 CAD
$34.76 CAD

Vendu en lots de : 5

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 0,375", pour le filetage extérieur trapézoïdal TR à droite avec un pas de 1,5", carbure WC-Co à grain fin revêtu PVD T8030 dans les gammes de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16ER150TR:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755330
Product FamilyTN TR EXT

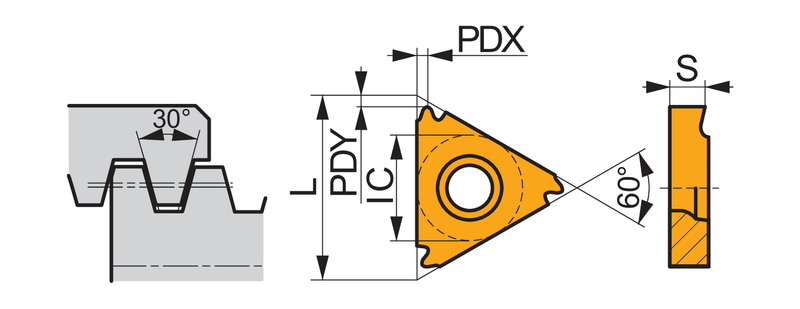

Insert Geometry
Insert DesignTN TR EXT
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Threading
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.059"
Tool Information
Reference Numbers
EDP Number6755330
EAN3603602906960
File Type Download
TN 16ER150TR:T8030 — Line Drawing PDF Download
