TN 22ER400TR:T8030
TN 22ER400TR:T8030

TN 22ER400TR:T8030

UGC DOR6755341
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.49 CAD - $53.49 CAD
$53.49 CAD
$53.49 CAD - $53.49 CAD
$53.49 CAD

Vendu en lots de : 5

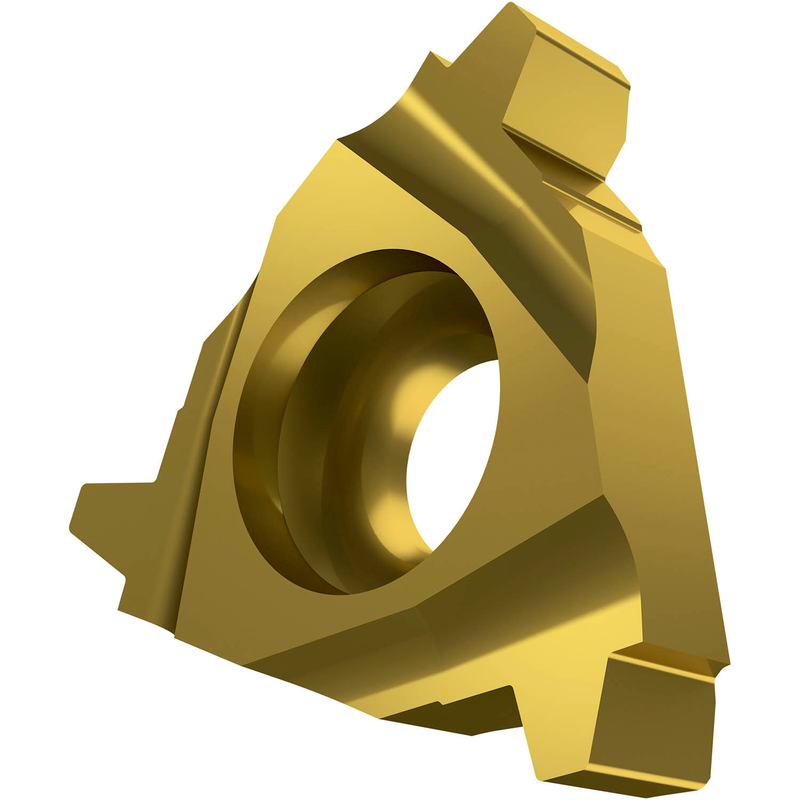

Plaquette à fileter unilatérale, triangulaire avec un diamètre de cercle inscrit de 0,500", pour le filetage extérieur à droite de filets trapézoïdaux TR avec un pas de 4", carbure WC-Co à grains fins revêtu PVD T8030 dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 22ER400TR:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755341
Product FamilyTN TR EXT

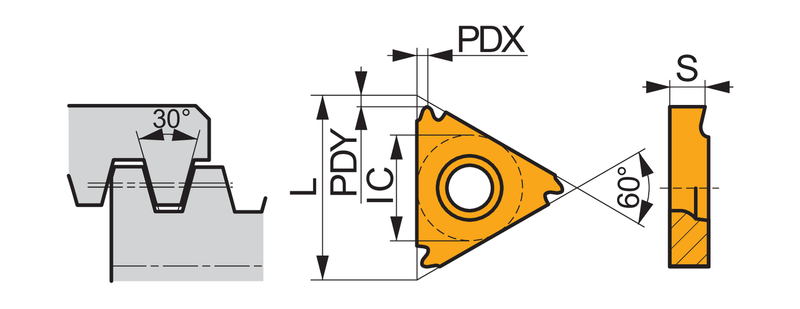

Insert Geometry
Insert DesignTN TR EXT
Insert Shape Code (SC)T - angulaire, angle d'ouverture de 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.185"
Insert Thickness — mm (S)4.71 mm
Threading
Thread Pitch — mm (TP)4.0 mm
Thread Pitch — in (TP)0.157"
Tool Information
Reference Numbers
EDP Number6755341
EAN3603602907073
File Type Download
TN 22ER400TR:T8030 — Line Drawing PDF Download
