TN 22NR060RD:T8030
TN 22NR060RD:T8030

TN 22NR060RD:T8030

UGC DOR6755356
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.54 CAD - $49.54 CAD
$49.54 CAD
$49.54 CAD - $49.54 CAD
$49.54 CAD

Vendu en lots de : 5

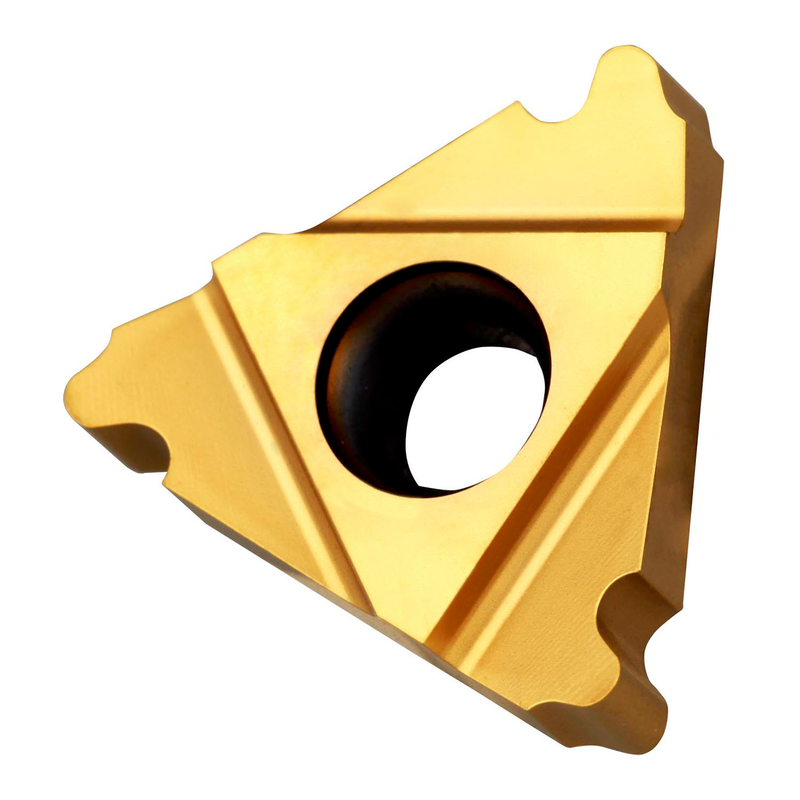

Plaquette à fileter unilatérale, triangulaire avec un diamètre de cercle inscrit de 0,500", pour le filetage à droite de filetages internes RD avec 6 filets par pouce, carbure WC-Co à grain fin revêtu PVD T8030 dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 22NR060RD:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755356
Product FamilyCT RQ INT

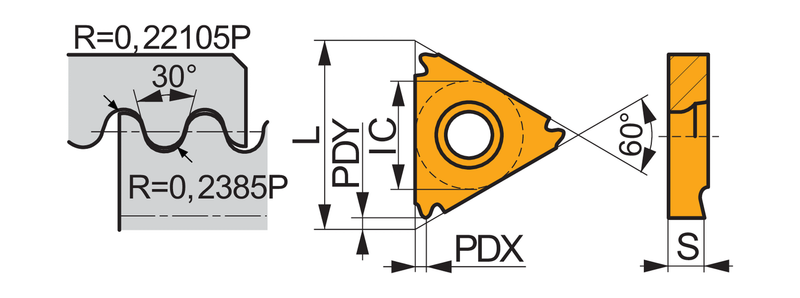

Insert Geometry
Insert DesignTN RD INT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.185"
Insert Thickness — mm (S)4.71 mm
Threading
Threads per Inch (TPI)6.0
Tool Information
Reference Numbers
EDP Number6755356
EAN3603602907226
File Type Download
TN 22NR060RD:T8030 — Line Drawing PDF Download
