TN 11NL100M:T8030
TN 11NL100M:T8030

TN 11NL100M:T8030

UGC DOR6755370
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.57 CAD - $29.57 CAD
$29.57 CAD
$29.57 CAD - $29.57 CAD
$29.57 CAD

Vendu en lots de : 5

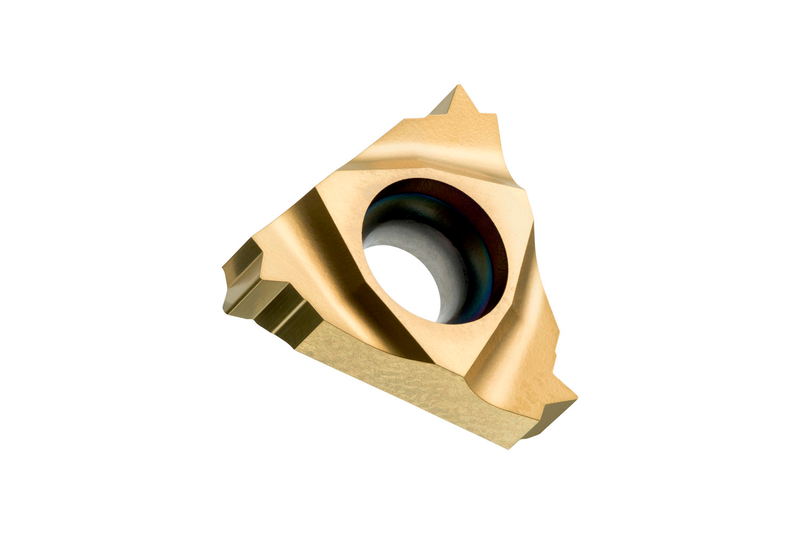

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 6,35 mm, pour le filetage intérieur ISO-métrique à gauche avec un pas de 1", en carbure WC-Co à grains fins revêtu PVD T8030 dans les plages de grades ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 11NL100M:T8030
GradeT8030
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6755370
Product FamilyTN M INT

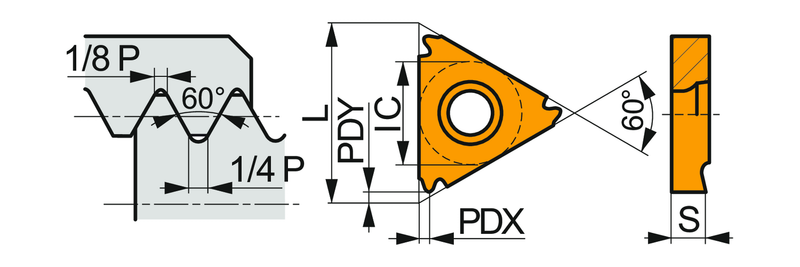

Insert Geometry
Insert DesignTN M INT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Threading
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Reference Numbers
EDP Number6755370
EAN3603602907363
File Type Download
TN 11NL100M:T8030 — Line Drawing PDF Download
