HZ 1006-80 H7:333TN
HZ 1006-80 H7:333TN

HZ 1006-80 H7:333TN

UGC DOR6755405
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.76 CAD - $90.76 CAD
$90.76 CAD
$90.76 CAD - $90.76 CAD
$90.76 CAD

Vendu en lots de : 2

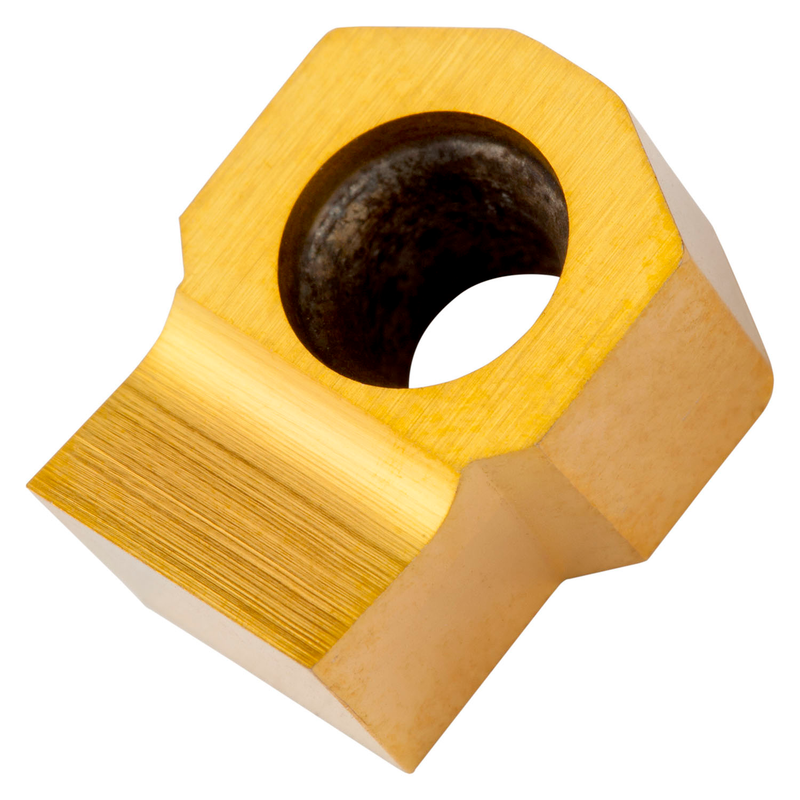

Plaquette à une seule extrémité pour le brochage de rainures de clavette et de fentes d'une largeur de 8 mm avec une tolérance H7, en HSS revêtu PVD 333TN de nuance ISO P45-P50 pour l'usinage de l'acier, en combinaison avec une broche PHZ…-10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ 1006-80 H7:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755405
Product FamilyHZ

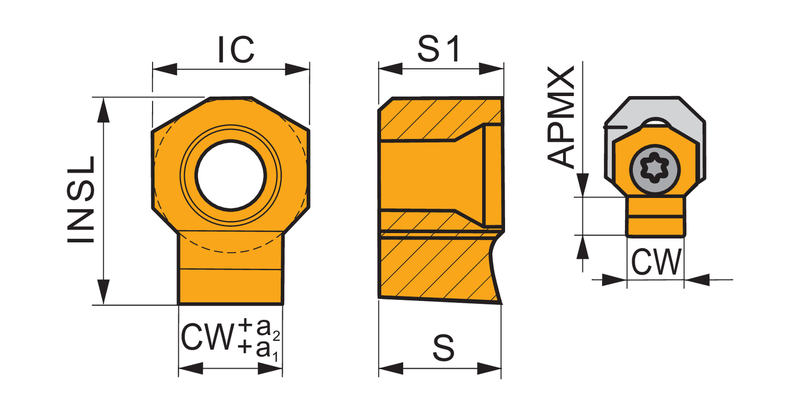

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.394"
Inscribed Circle Dia. — mm (IC)10.0 mm
Insert Thickness — in (S)0.246"
Insert Thickness — mm (S)6.25 mm
Depth of Cut Max — in (APMX)0.205"
Depth of Cut Max — mm (APMX)5.2 mm
Tool Information
Reference Numbers
EDP Number6755405
EAN3603602907714
File Type Download
HZ 1006-80 H7:333TN — Line Drawing PDF Download
