HZ 1309-100 H7:333TN
HZ 1309-100 H7:333TN

HZ 1309-100 H7:333TN

UGC DOR6755407
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.83 CAD - $106.83 CAD
$106.83 CAD
$106.83 CAD - $106.83 CAD
$106.83 CAD

Vendu en lots de : 2

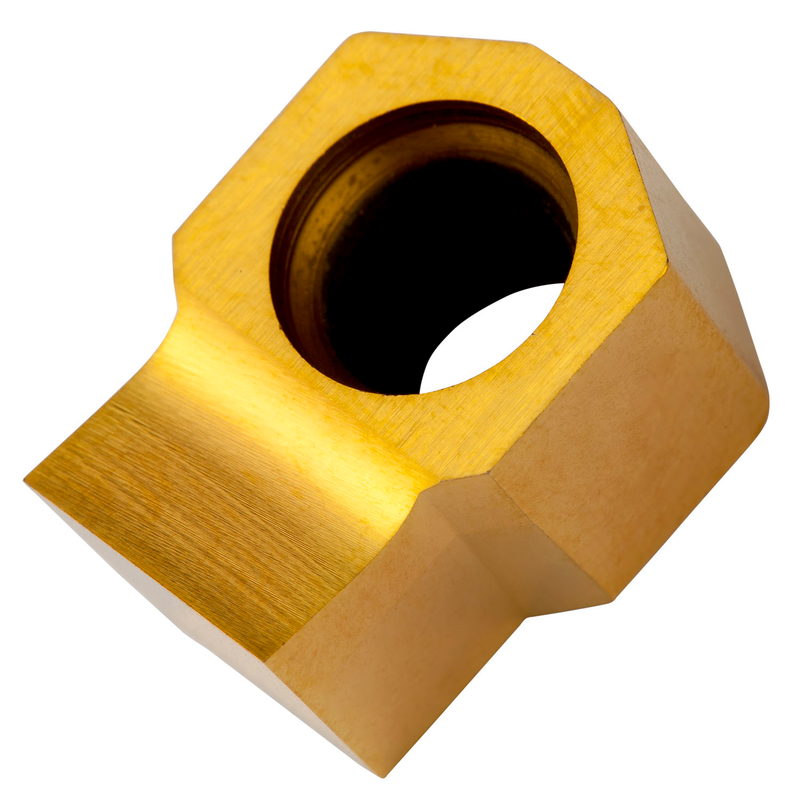

Plaquette pour rainurage et clavetage à une seule extrémité pour le brochage d'une largeur de 10 mm dans la classe de tolérance H7, en HSS avec revêtement PVD grade 333TN, dans les plages de grade ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche PHZ...-13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ 1309-100 H7:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755407
Product FamilyHZ

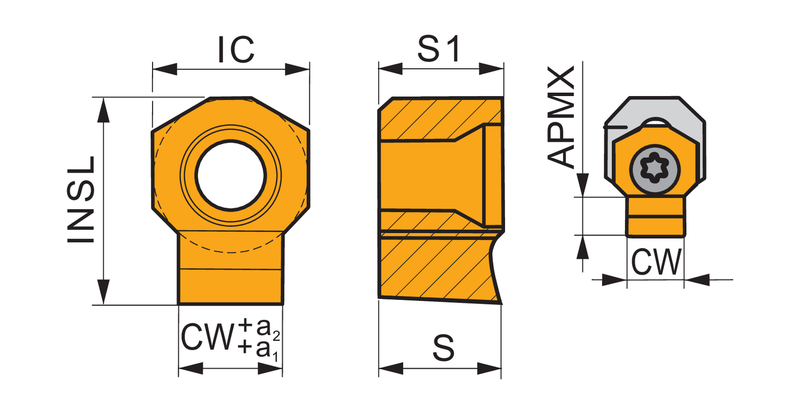

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.512"
Inscribed Circle Dia. — mm (IC)13.0 mm
Insert Thickness — in (S)0.37"
Insert Thickness — mm (S)9.4 mm
Depth of Cut Max — in (APMX)0.244"
Depth of Cut Max — mm (APMX)6.2 mm
Tool Information
Reference Numbers
EDP Number6755407
EAN3603602907738
File Type Download
HZ 1309-100 H7:333TN — Line Drawing PDF Download
