HZ 1309-120 C11:333TN
HZ 1309-120 C11:333TN

HZ 1309-120 C11:333TN

UGC DOR6755409
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$101.57 CAD - $101.57 CAD
$101.57 CAD
$101.57 CAD - $101.57 CAD
$101.57 CAD

Vendu en lots de : 2

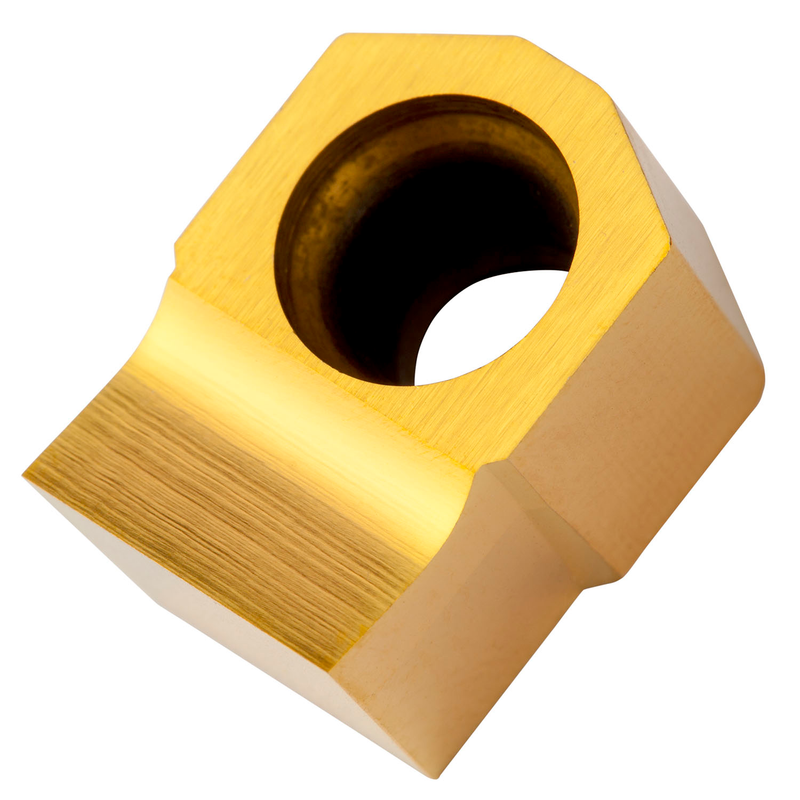

Plaquette pour rainurage et clavetage à une seule extrémité pour le brochage d'une largeur de 12 mm dans la classe de tolérance C11, HSS revêtu PVD de qualité 333TN dans les plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ…-13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ 1309-120 C11:333TN
Grade333TN
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6755409
Product FamilyHZ

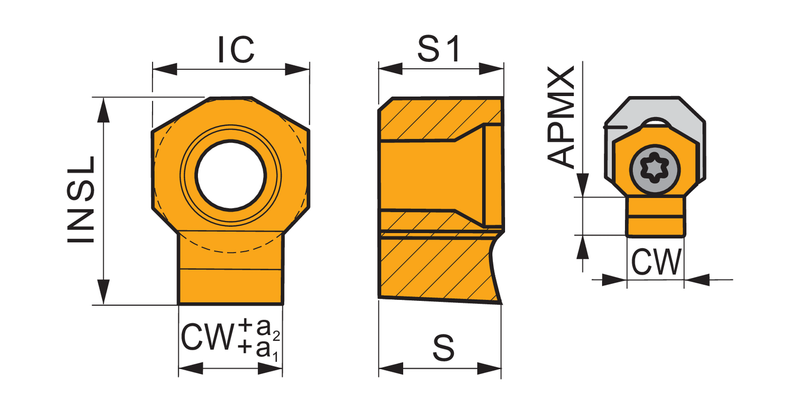

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.512"
Inscribed Circle Dia. — mm (IC)13.0 mm
Insert Thickness — in (S)0.37"
Insert Thickness — mm (S)9.4 mm
Depth of Cut Max — in (APMX)0.283"
Depth of Cut Max — mm (APMX)7.2 mm
Tool Information
Reference Numbers
EDP Number6755409
EAN3603602907752
File Type Download
HZ 1309-120 C11:333TN — Line Drawing PDF Download
