DNG 432 T00420:TC100
DNG 432 T00420:TC100

DNG 432 T00420:TC100

UGC DOR6755414
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.70 CAD - $31.70 CAD
$31.70 CAD
$31.70 CAD - $31.70 CAD
$31.70 CAD

Vendu en lots de : 10

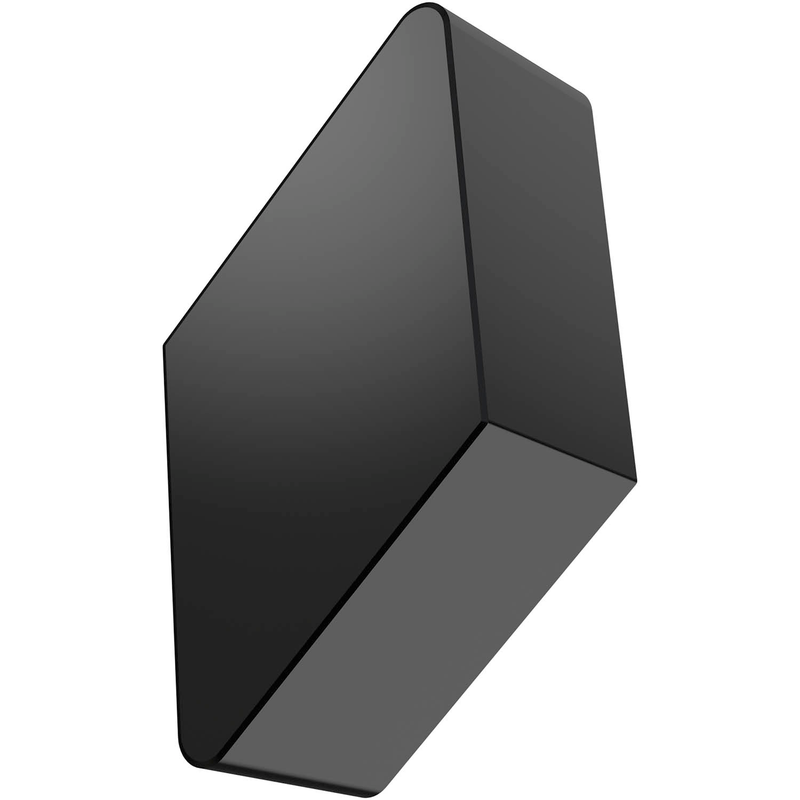

Plaquette double face de tournage, rhomboïde 55°, plate avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de pointe de 1/32", précision de positionnement selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0.004", en nuance TC100, une céramique non revêtue de la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DNG 432 T00420:TC100
Product Name (ISO)DNGN 150408 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755414
Product FamilyDNGN CER
Insert Geometry
Insert DesignDNGN
Insert Shape Code (SC)D - angle inclus rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.126"
Depth of Cut Max — mm (APMX)3.2 mm
Tool Information
Reference Numbers
EDP Number6755414
EAN3603602907806
File Type Download
DNG 432 T00420:TC100 — Line Drawing PDF Download
