RNG 32 T00420:TC100
RNG 32 T00420:TC100

RNG 32 T00420:TC100

UGC DOR6755415
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.26 CAD - $22.26 CAD
$22.26 CAD
$22.26 CAD - $22.26 CAD
$22.26 CAD

Vendu en lots de : 10

Plaquette réversible, ronde, lisse, diamètre 3/8", épaisseur 1/8", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0.004", en nuance TC100, une céramique non revêtue dans la gamme ISO K01-K15, pour l'usinage à grande vitesse de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)RNG 32 T00420:TC100
Product Name (ISO)RNGN 090300 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755415
Product FamilyRNGN CER
Insert Geometry
Insert DesignRNGN
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.102"
Depth of Cut Max — mm (APMX)2.6 mm
Tool Information
Reference Numbers
EDP Number6755415
EAN3603602907813
File Type Download

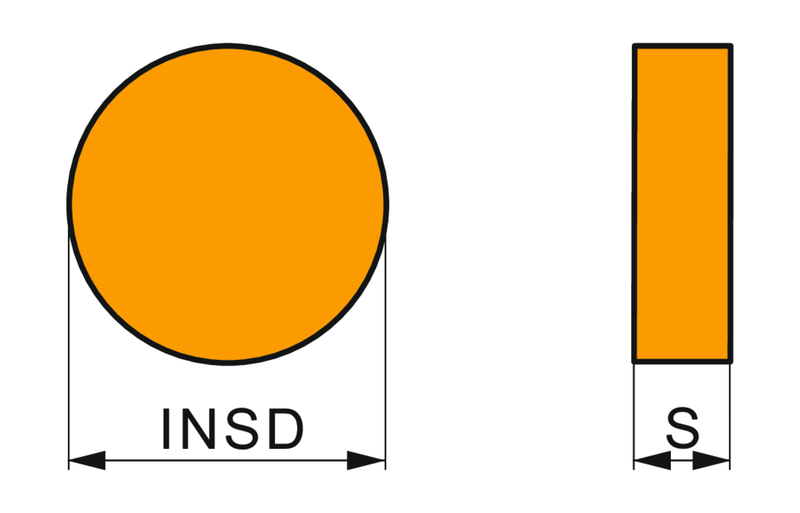

RNG 32 T00420:TC100 — Line Drawing PDF Download
