RNG 45 T00420:TC100

RNG 45 T00420:TC100

UGC DOR6755417
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.00 CAD - $30.00 CAD
$30.00 CAD
$30.00 CAD - $30.00 CAD
$30.00 CAD

Vendu en lots de : 10

Plaquette de tournage double face, ronde, lisse d'un diamètre de 1/2", épaisseur de 5/16", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0.004", en nuance TC100, une céramique non revêtue dans la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)RNG 45 T00420:TC100
Product Name (ISO)RNGN 120700 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755417
Product FamilyRNGN CER

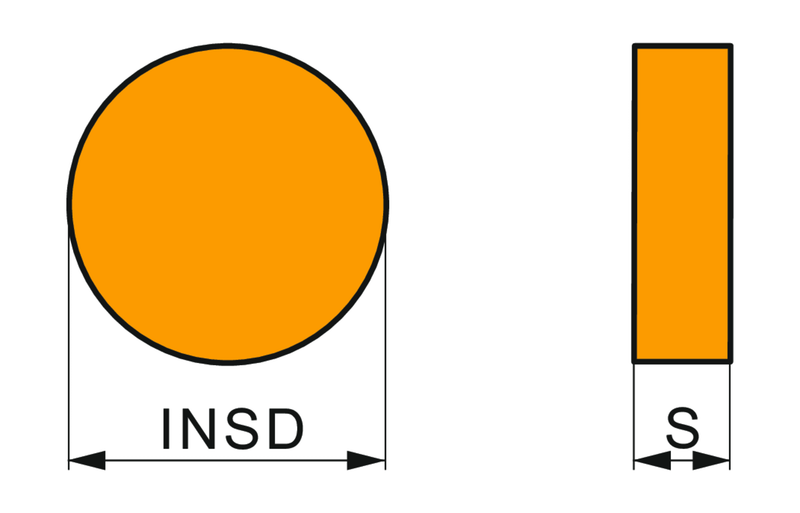

Insert Geometry
Insert DesignRNGN
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.134"
Depth of Cut Max — mm (APMX)3.4 mm
Tool Information
Reference Numbers
EDP Number6755417
EAN3603602907837
File Type Download
RNG 45 T00420:TC100 — Line Drawing PDF Download
