RNG 45 T06015:TC100

RNG 45 T06015:TC100

UGC DOR6755418
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.00 CAD - $30.00 CAD
$30.00 CAD
$30.00 CAD - $30.00 CAD
$30.00 CAD

Vendu en lots de : 10

Plaquette réversible de tournage, ronde, lisse, diamètre 1/2", épaisseur 5/16", précision de positionnement selon la classe de tolérance ISO-G, arêtes de coupe avec chanfrein de protection T-land -15°/0,060", en nuance TC100, une céramique non revêtue de la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)RNG 45 T06015:TC100
Product Name (ISO)RNGN 120700 T15015:TC100
GradeCT100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755418
Product FamilyRNGN CER
Insert Geometry
Insert DesignRNGN
Insert Shape Code (SC)R - tour
Insert Geometry
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.134"
Depth of Cut Max — mm (APMX)3.4 mm
Tool Information
Reference Numbers
EDP Number6755418
EAN3603602907844
File Type Download

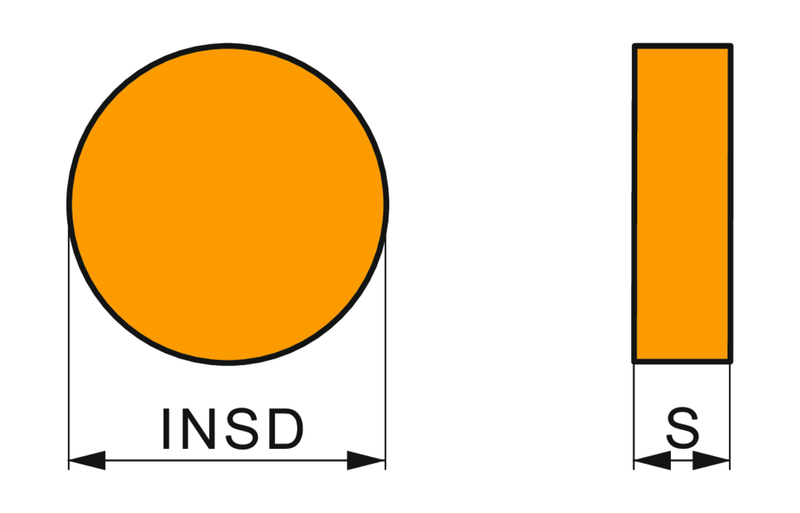

RNG 45 T06015:TC100 — Line Drawing PDF Download
