TNG 332 T00420:TC100
TNG 332 T00420:TC100

TNG 332 T00420:TC100

UGC DOR6755422
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.76 CAD - $25.76 CAD
$25.76 CAD
$25.76 CAD - $25.76 CAD
$25.76 CAD

Vendu en lots de : 10

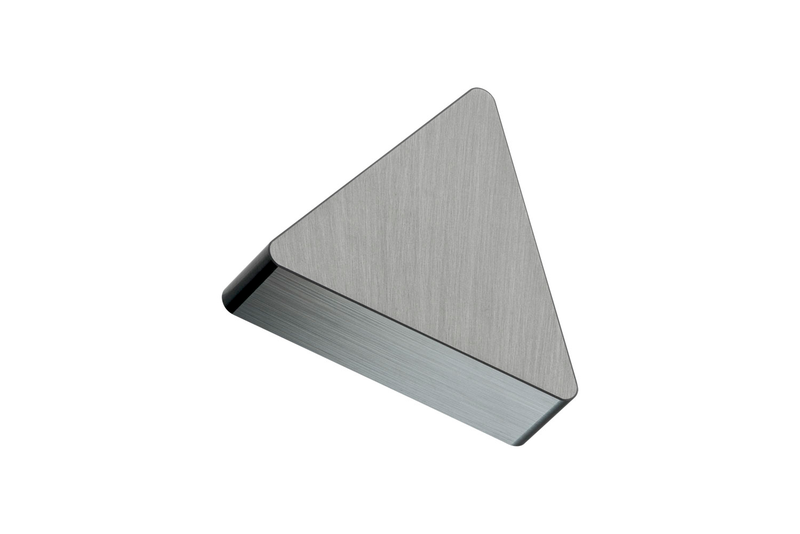

Plaquette réversible, triangulaire, unie avec diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/32", précision de positionnement selon la classe de tolérance ISO G, arêtes de coupe avec facette T-land -20°/0.004", en nuance TC100, une céramique non revêtue de la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TNG 332 T00420:TC100
Product Name (ISO)TNGN 160408 T01020:TC100
GradeCT100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755422
Product FamilyTNGN CER

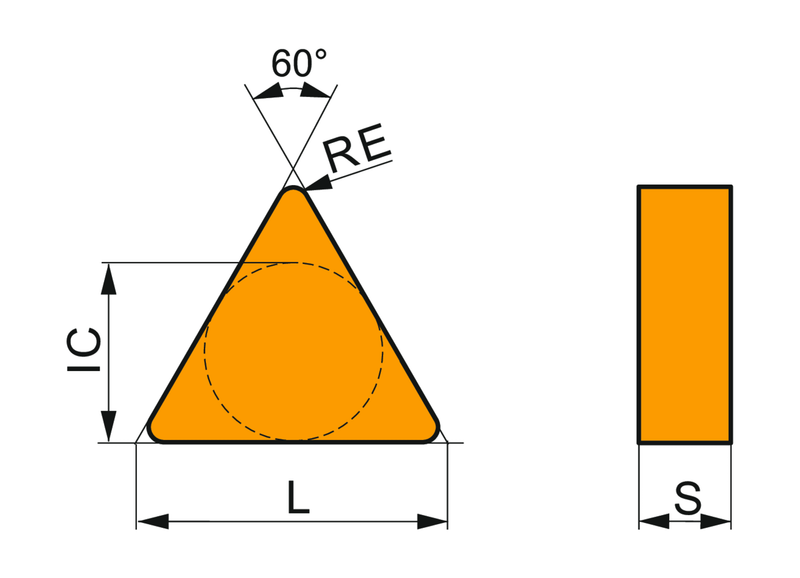

Insert Geometry
Insert DesignTNGN
Insert Shape Code (SC)T - triangulaire avec angle d'ouverture de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.15"
Depth of Cut Max — mm (APMX)3.8 mm
Tool Information
Reference Numbers
EDP Number6755422
EAN3603602907882
File Type Download
TNG 332 T00420:TC100 — Line Drawing PDF Download
