TPG 222 T00420:TC100

TPG 222 T00420:TC100

UGC DOR6755423
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.96 CAD - $24.96 CAD
$24.96 CAD
$24.96 CAD - $24.96 CAD
$24.96 CAD

Vendu en lots de : 10

Plaquette triangulaire amovible simple face avec un dépouille de 11°, un diamètre de cercle inscrit de 1/4", une épaisseur de 1/8", un rayon de bec de 1/32", une précision de positionnement conforme à la classe de tolérance ISO-G, des arêtes de coupe avec facette de brise-copeaux de -20°/0,004", en nuance TC100, une céramique non revêtue dans la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TPG 222 T00420:TC100
Product Name (ISO)TPGN 110308 T01020:TC100
GradeCT100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755423
Product FamilyTPGN CER

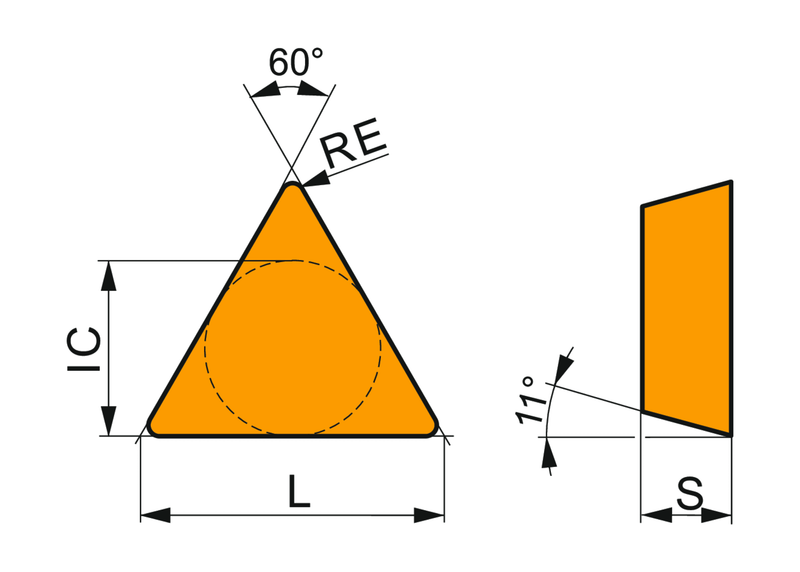

Insert Geometry
Insert DesignTPGN
Insert Shape Code (SC)T - angulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.102"
Depth of Cut Max — mm (APMX)2.6 mm
Tool Information
Reference Numbers
EDP Number6755423
EAN3603602907899
File Type Download
TPG 222 T00420:TC100 — Line Drawing PDF Download
