GNC 453 T00420:TC100
GNC 453 T00420:TC100

GNC 453 T00420:TC100

UGC DOR6755430
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.00 CAD - $30.00 CAD
$30.00 CAD
$30.00 CAD - $30.00 CAD
$30.00 CAD

Vendu en lots de : 10

Plaquette de tournage double face, rhomboïde 80°, lisse avec diamètre du cercle inscrit de 1/2", épaisseur de 5/16", rayon de bec de 3/64", précision de positionnement selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0,004", en nuance TC100, une céramique non revêtue de la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)GNV 453 T00420:TC100
Product Name (ISO)CNGN 120712 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755430
Product FamilyGN CNRC

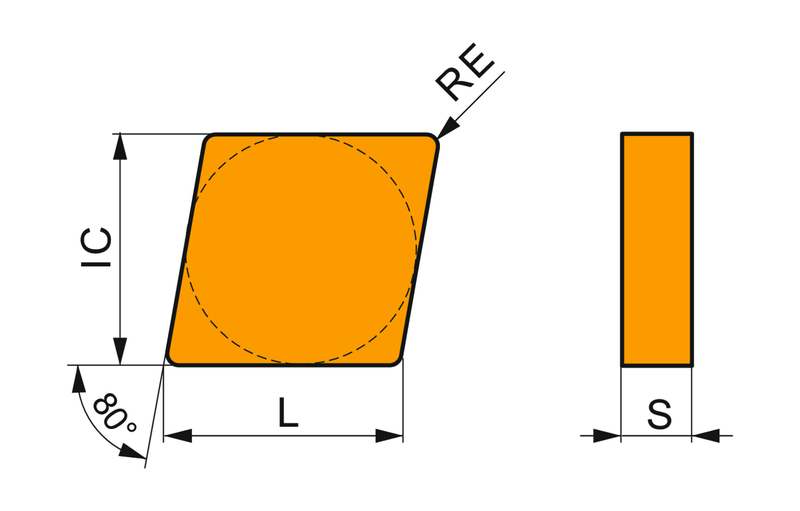

Insert Geometry
Insert DesignGCNC
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755430
EAN3603602907967
File Type Download
GNC 453 T00420:TC100 — Line Drawing PDF Download
