RCGX 060600 K15015:TC100
RCGX 060600 K15015:TC100

RCGX 060600 K15015:TC100

UGC DOR6755435
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.40 CAD - $52.40 CAD
$52.40 CAD
$52.40 CAD - $52.40 CAD
$52.40 CAD

Vendu en lots de : 10

Plaquette de tournage simple face, dégagement 7° rond, diamètre 6,35mm, épaisseur 6,35mm, précision d'indexage selon classe de tolérance ISO-G, arêtes de coupe avec double facette T-land -15°/1,5mm, en nuance TC100, une céramique non revêtue dans la gamme ISO K01-K15, pour usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCGX 060600 K15015:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755435
Product FamilyRCGX CER

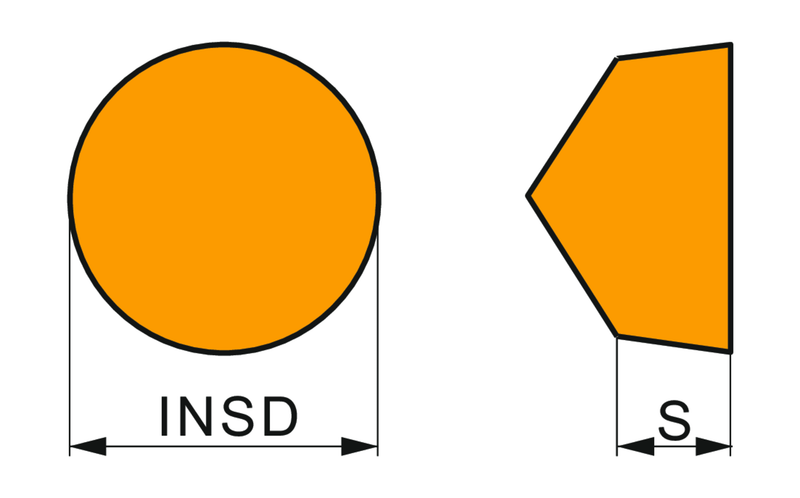

Insert Geometry
Insert DesignRCGX
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.067"
Depth of Cut Max — mm (APMX)1.7 mm
Tool Information
Reference Numbers
EDP Number6755435
EAN3603602908018
File Type Download
RCGX 060600 K15015:TC100 — Line Drawing PDF Download
