RCGX 090700 K15015:TC100
RCGX 090700 K15015:TC100

RCGX 090700 K15015:TC100

UGC DOR6755436
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.40 CAD - $52.40 CAD
$52.40 CAD
$52.40 CAD - $52.40 CAD
$52.40 CAD

Vendu en lots de : 10

Plaquette de tournage simple face, avec dépouille de 7° ronde, d'un diamètre de 9,525 mm, d'une épaisseur de 7,94 mm, précision d'indexation selon la classe de tolérance ISO-G, arêtes de coupe à double facette en T de -15°/1,5 mm, en nuance TC100, une céramique non revêtue dans la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCGX 090700 K15015:TC100
GradeCT100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755436
Product FamilyRCGX CER
Insert Geometry
Insert DesignRCGX
Insert Shape Code (SC)R - tour
Insert Geometry
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.102"
Depth of Cut Max — mm (APMX)2.6 mm
Tool Information
Reference Numbers
EDP Number6755436
EAN3603602908025
File Type Download

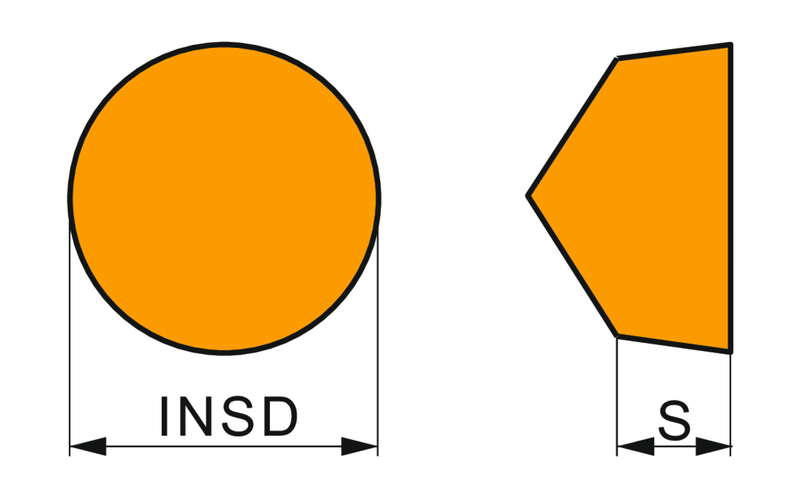

RCGX 090700 K15015:TC100 — Line Drawing PDF Download
