SNG 322 T00420:TC100

SNG 322 T00420:TC100

UGC DOR6755439
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.26 CAD - $22.26 CAD
$22.26 CAD
$22.26 CAD - $22.26 CAD
$22.26 CAD

Vendu en lots de : 10

Plaquette de tournage double face, carrée, lisse avec diamètre de cercle inscrit de 3/8", épaisseur de 1/8", rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0.004", en nuance TC100, une céramique non revêtue dans la plage ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNG 322 T00420:TC100
Product Name (ISO)SNGN 090308 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755439
Product FamilySNGN CER

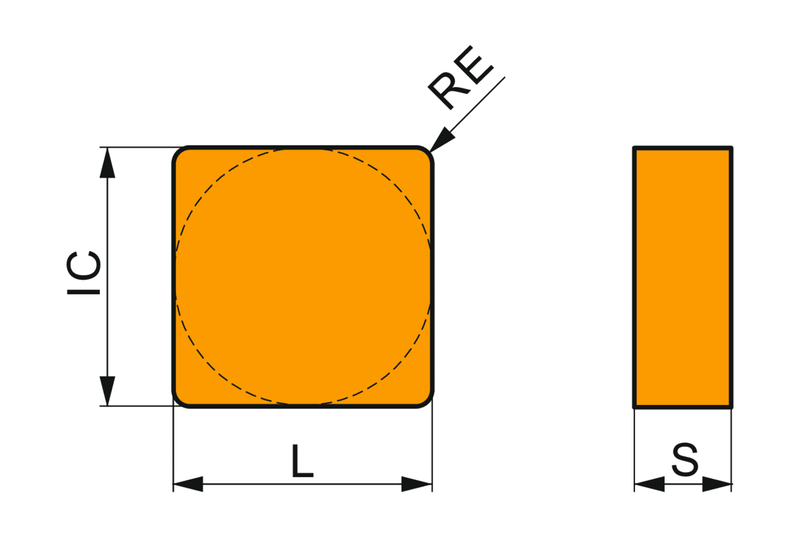

Insert Geometry
Insert DesignSNGN
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6755439
EAN3603602908056
File Type Download
SNG 322 T00420:TC100 — Line Drawing PDF Download
