SNG 452 T00420:TC100

SNG 452 T00420:TC100

UGC DOR6755442
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.00 CAD - $30.00 CAD
$30.00 CAD
$30.00 CAD - $30.00 CAD
$30.00 CAD

Vendu en lots de : 10

Plaquette tournage double face, carrée, lisse, avec diamètre de cercle inscrit de 1/2", épaisseur de 5/16", rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0.004", en nuance TC100, une céramique non revêtue dans la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNG 452 T00420:TC100
Product Name (ISO)SNGN 120708 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6755442
Product FamilyGRSDC CER

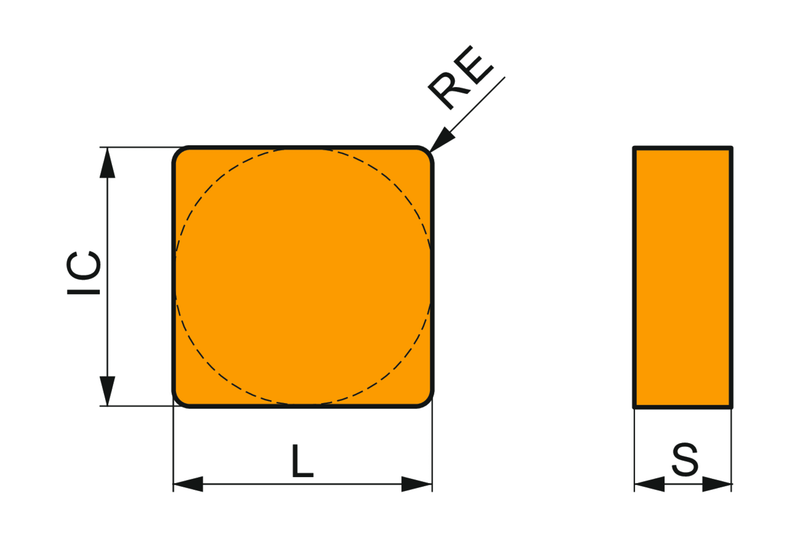

Insert Geometry
Insert DesignSNGN
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755442
EAN3603602908087
File Type Download
SNG 452 T00420:TC100 — Line Drawing PDF Download
