SPG 422 T00420:TC100
SPG 422 T00420:TC100

SPG 422 T00420:TC100

UGC DOR6755444
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.06 CAD - $38.06 CAD
$38.06 CAD
$38.06 CAD - $38.06 CAD
$38.06 CAD

Vendu en lots de : 10

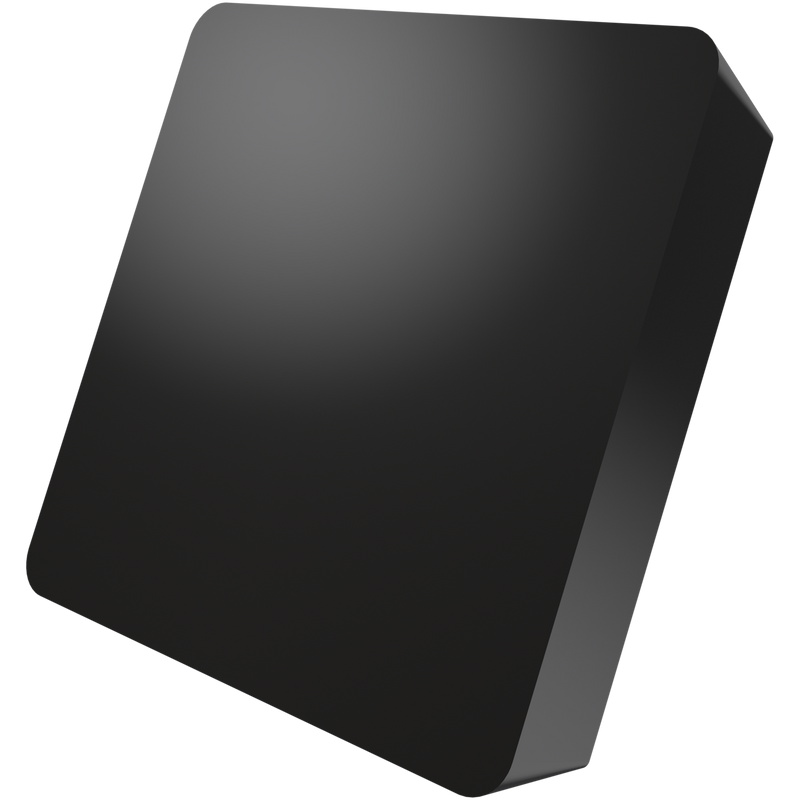

Plaquette simple face à arête de coupe positive, carrée avec un dégagement de 11°, diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur de 3,18 mm (1/8"), rayon de bec de 0,79 mm (1/32"), précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0,102 mm (0.004"), en nuance TC100, une céramique non revêtue de la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SPG 422 T00420:TC100
Product Name (ISO)SPGN 120308 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755444
Product FamilyCSPN CÉR

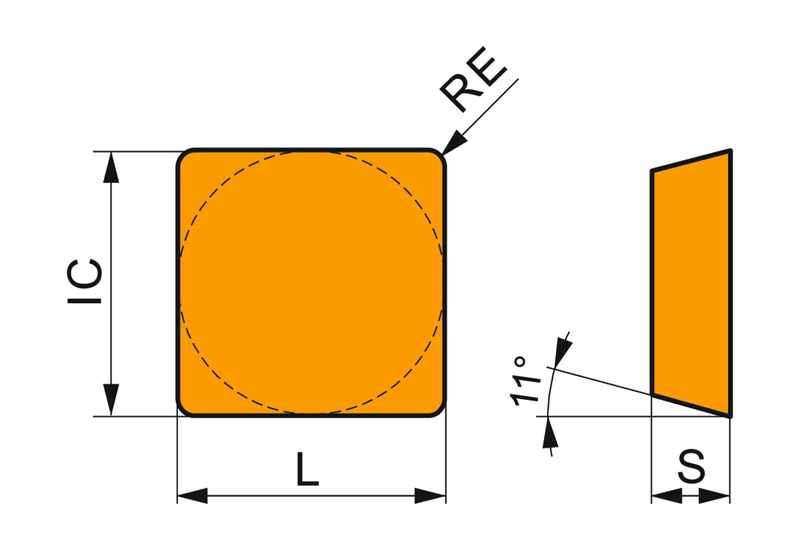

Insert Geometry
Insert DesignSPGN
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755444
EAN3603602908100
File Type Download
SPG 422 T00420:TC100 — Line Drawing PDF Download
