VNGA 331 T00420:TC100
VNGA 331 T00420:TC100

VNGA 331 T00420:TC100

UGC DOR6755451
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.30 CAD - $39.30 CAD
$39.30 CAD
$39.30 CAD - $39.30 CAD
$39.30 CAD

Vendu en lots de : 10

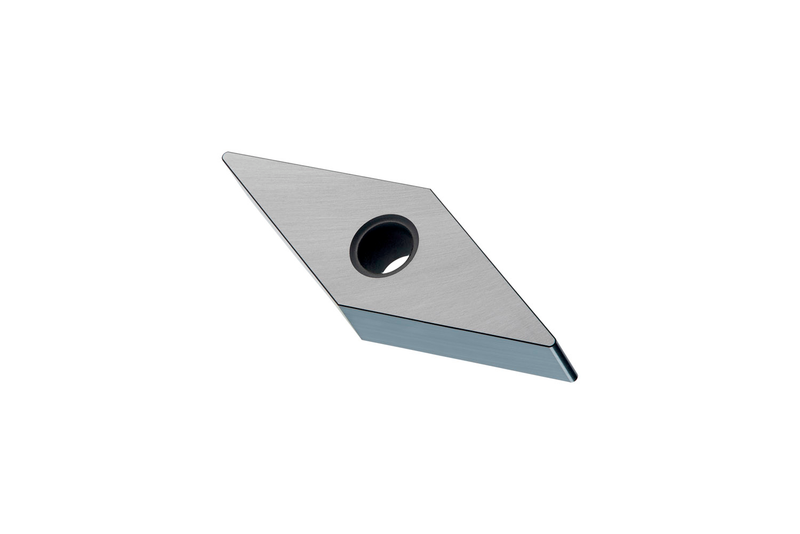

Plaquette tournante double face, rhomboïdale à 35° avec trou de serrage d'un diamètre de cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/64", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe avec facette T-land -20°/0.004", en nuance TC100, une céramique non revêtue dans la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)VNGA 331 T00420:TC100
Product Name (ISO)VNGA 160404 T01020:TC100
GradeTC100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755451
Product FamilyVNGA CER

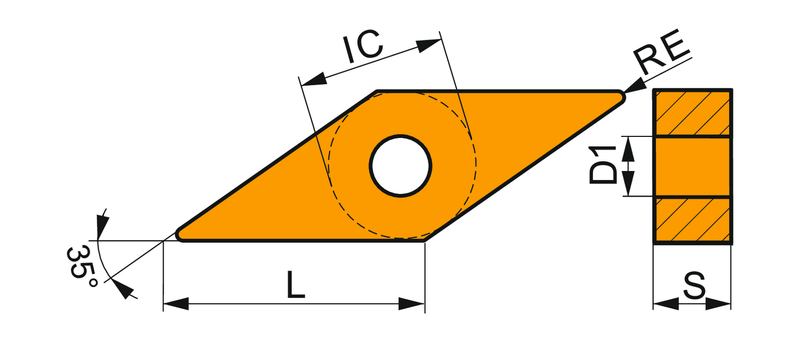

Insert Geometry
Insert DesignVNGA
Insert Shape Code (SC)V - angle de 35° inclus (rhombique)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.114"
Depth of Cut Max — mm (APMX)2.9 mm
Tool Information
Reference Numbers
EDP Number6755451
EAN3603602908179
File Type Download
VNGA 331 T00420:TC100 — Line Drawing PDF Download
