HZ/2 14-14 H7:333TN
HZ/2 14-14 H7:333TN

HZ/2 14-14 H7:333TN

UGC DOR6755460
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$287.14 CAD - $287.14 CAD
$287.14 CAD
$287.14 CAD - $287.14 CAD
$287.14 CAD

Vendu en lots de : 2

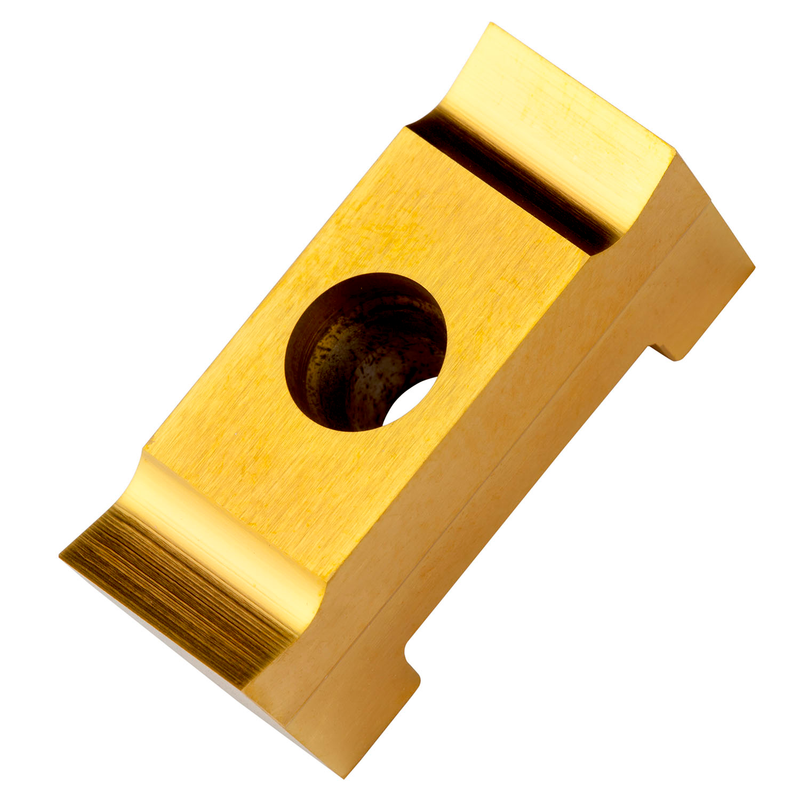

Plaquette double à rainure de clavette et à rainurer pour le brochage d'une largeur de 14 mm dans la classe de tolérance H7, nuance 333TN HSS avec revêtement PVD dans les plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ-2…-14

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ/2 14-14 H7:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755460
Product FamilyHZ-2

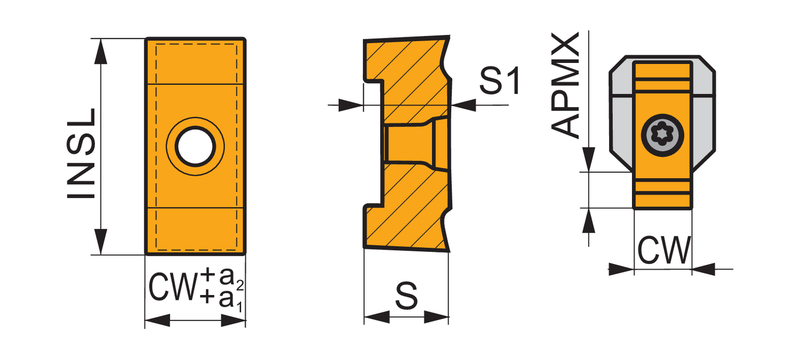

Insert Geometry
Insert DesignHZ-2
Insert Shape Code (SC)H - hexagonal
Insert Thickness — in (S)0.547"
Insert Thickness — mm (S)13.9 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6755460
EAN3603602908261
File Type Download
HZ/2 14-14 H7:333TN — Line Drawing PDF Download
