HZ/2 14-14 C11:333TN
HZ/2 14-14 C11:333TN

HZ/2 14-14 C11:333TN

UGC DOR6755462
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$273.21 CAD - $273.21 CAD
$273.21 CAD
$273.21 CAD - $273.21 CAD
$273.21 CAD

Vendu en lots de : 2

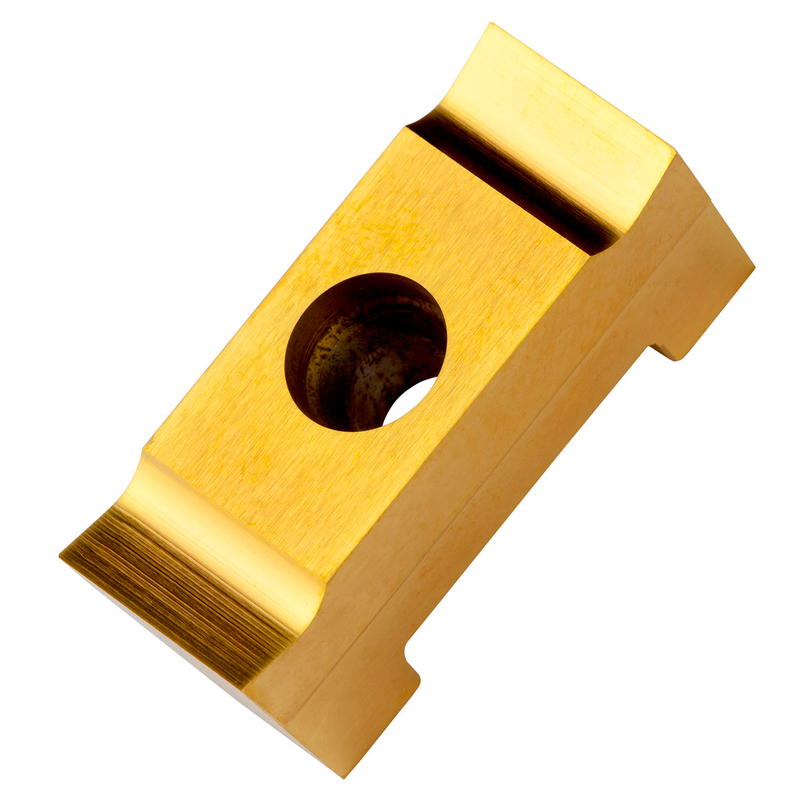

Plaquette à double extrémité pour rainurage et mortaisage pour le brochage d'une largeur de 14 mm avec une tolérance de classe C11, nuance 333TN HSS avec revêtement PVD pour les plages de nuance ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ-2…-14

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ/2 14-14 C11:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755462
Product FamilyHZ-2
Insert Geometry
Insert DesignHZ-2
Insert Shape Code (SC)H - hexagonal
Insert Thickness — in (S)0.547"
Insert Thickness — mm (S)13.9 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6755462
EAN3603602908285
File Type Download

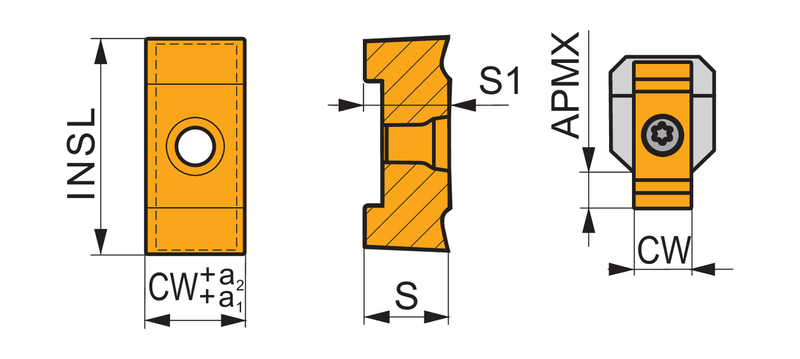

HZ/2 14-14 C11:333TN — Line Drawing PDF Download
