SNGA 432 T00425:TC100
SNGA 432 T00425:TC100

SNGA 432 T00425:TC100

UGC DOR6755474
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.66 CAD - $26.66 CAD
$26.66 CAD
$26.66 CAD - $26.66 CAD
$26.66 CAD

Vendu en lots de : 10

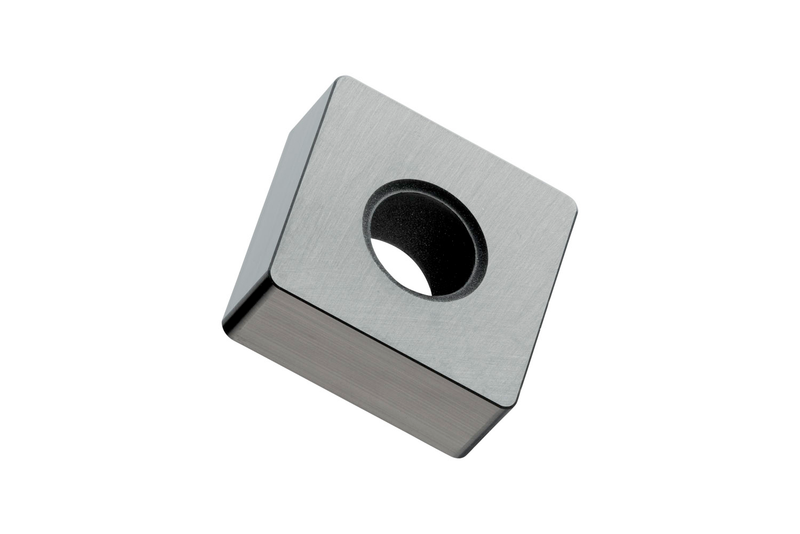

Plaquette de tournage double face, carrée avec trou de fixation, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe avec facette brise-copeaux T-land -25°/0.004", en nuance TC100, une céramique non revêtue de la gamme ISO K01-K15, pour l'usinage à grande vitesse des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNGA 432 T00425:TC100
Product Name (ISO)SNGA 120408 T01025:TC100
GradeCT100
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755474
Product FamilySNGA CER
Insert Geometry
Insert DesignSNGA
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755474
EAN3603602908407
File Type Download
SNGA 432 T00425:TC100 — Line Drawing PDF Download
