HZ90 0604-30 C11:333TN
HZ90 0604-30 C11:333TN

HZ90 0604-30 C11:333TN

UGC DOR6755478
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.69 CAD - $65.69 CAD
$65.69 CAD
$65.69 CAD - $65.69 CAD
$65.69 CAD

Vendu en lots de : 2

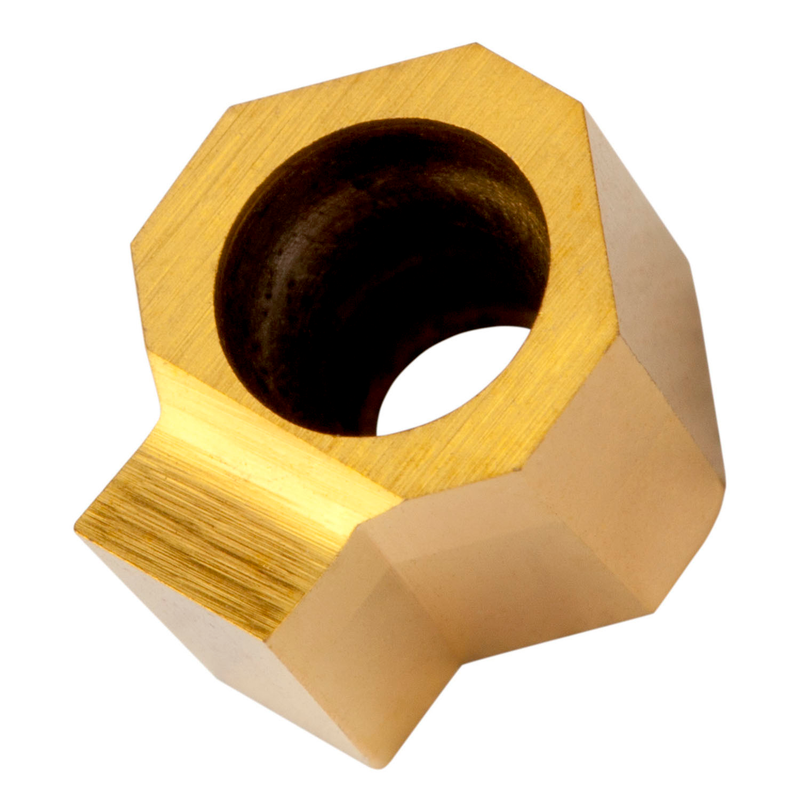

Plaquette à une lèvre pour rainurage et brochage, largeur 3 mm, tolérance C11, nuance 333TN HSS avec revêtement PVD, plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche PHZ…-06

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ90 0604-30 C11:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755478
Product FamilyHZ

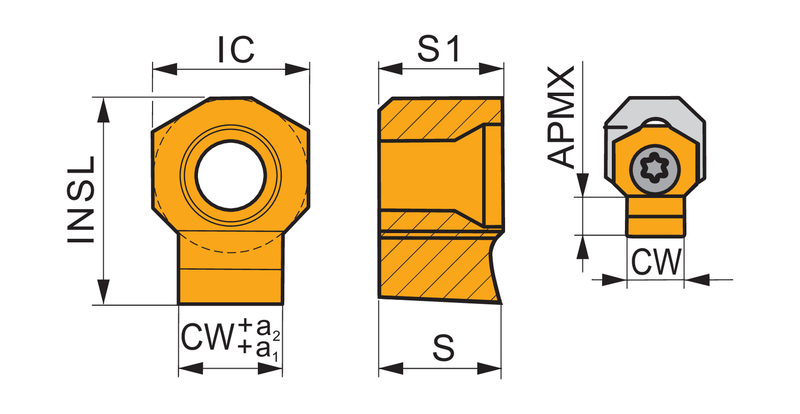

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.236"
Inscribed Circle Dia. — mm (IC)6.0 mm
Insert Thickness — in (S)0.183"
Insert Thickness — mm (S)4.66 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number6755478
EAN3603602908445
File Type Download
HZ90 0604-30 C11:333TN — Line Drawing PDF Download
