HZ90 0604-40 H7:333TN
HZ90 0604-40 H7:333TN

HZ90 0604-40 H7:333TN

UGC DOR6755481
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.33 CAD - $69.33 CAD
$69.33 CAD
$69.33 CAD - $69.33 CAD
$69.33 CAD

Vendu en lots de : 2

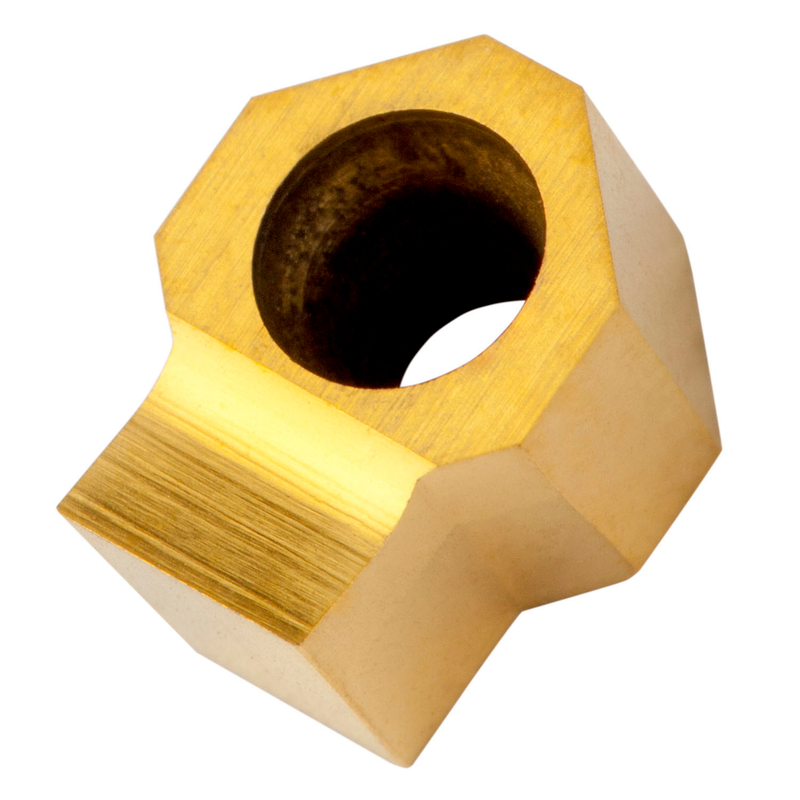

Plaquette à une seule arête pour le brochage de rainures de clavette et fentes de 4mm de largeur, classe de tolérance H7, nuance 333TN en HSS avec revêtement PVD pour la plage de nuances ISO P45-P50 pour l'usinage de l'acier, en combinaison avec une broche de taille PHZ…-06

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ90 0604-40 H7:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755481
Product FamilyHZ

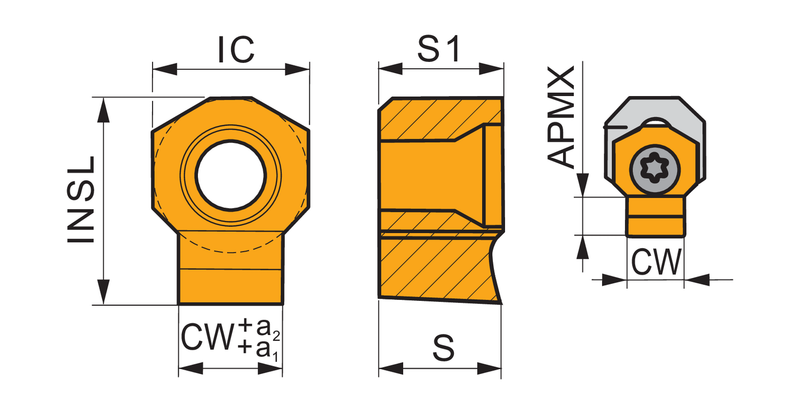

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.236"
Inscribed Circle Dia. — mm (IC)6.0 mm
Insert Thickness — in (S)0.183"
Insert Thickness — mm (S)4.66 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6755481
EAN3603602908476
File Type Download
HZ90 0604-40 H7:333TN — Line Drawing PDF Download
