HZ/2 18-18 C11:333TN
HZ/2 18-18 C11:333TN

HZ/2 18-18 C11:333TN

UGC DOR6755487
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$349.29 CAD - $349.29 CAD
$349.29 CAD
$349.29 CAD - $349.29 CAD
$349.29 CAD

Vendu en lots de : 2

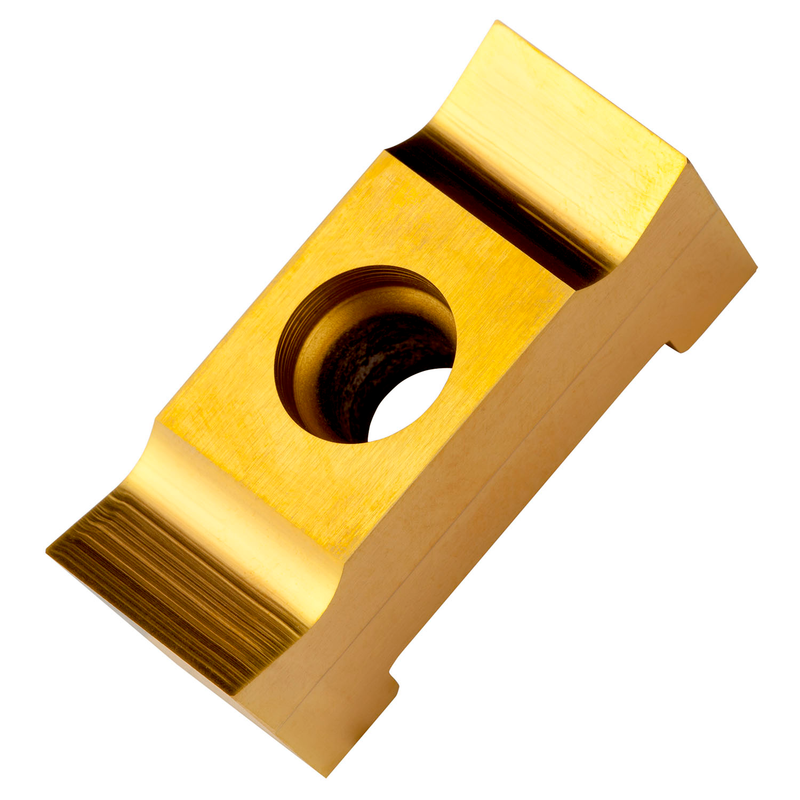

Plaquette de brochage à double extrémité pour rainure de clavette et fente, pour une largeur de 18 mm, tolérance C11, HSS revêtu PVD de nuance 333TN, plages de nuances ISO P45-P50 pour l’usinage de l’acier, en combinaison avec une broche PHZ-2…-18

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ/2 18-18 C11:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755487
Product FamilyHZ-2

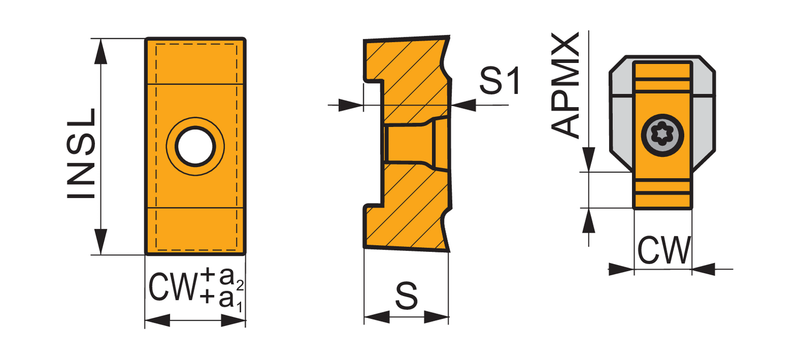

Insert Geometry
Insert DesignHZ-2
Insert Shape Code (SC)H - hexagonale
Insert Thickness — in (S)0.626"
Insert Thickness — mm (S)15.9 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6755487
EAN3603602908537
File Type Download
HZ/2 18-18 C11:333TN — Line Drawing PDF Download
