HZ/2 18-18 H7:333TN
HZ/2 18-18 H7:333TN

HZ/2 18-18 H7:333TN

UGC DOR6755488
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$368.57 CAD - $368.57 CAD
$368.57 CAD
$368.57 CAD - $368.57 CAD
$368.57 CAD

Vendu en lots de : 2

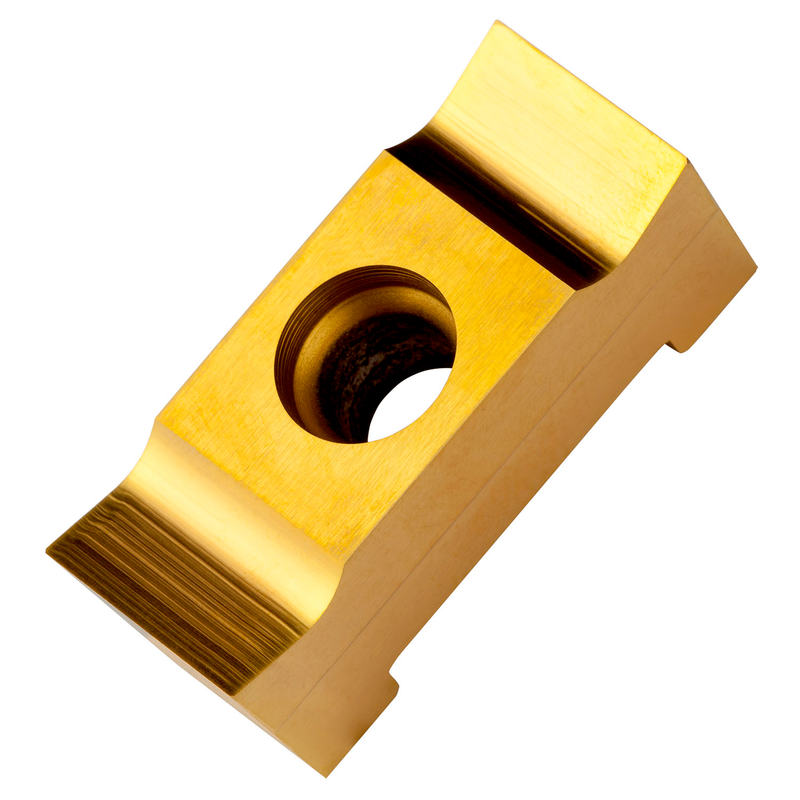

Plaquette de mortaisage et de brochage double face pour le brochage d'une largeur de 18 mm dans la classe de tolérance H7, en HSS revêtu PVD grade 333TN, dans les plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ-2…-18

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ/2 18-18 H7:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755488
Product FamilyHZ-2

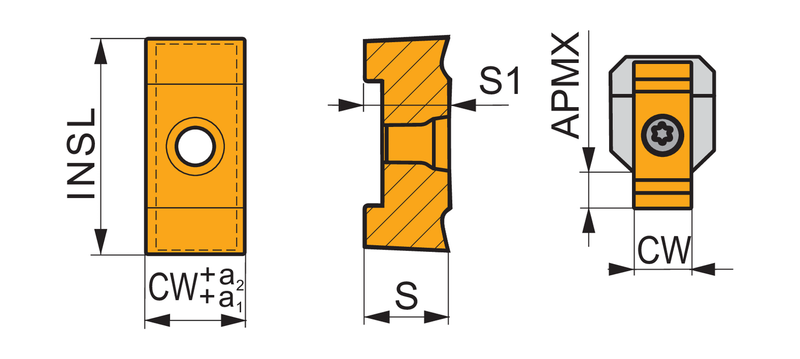

Insert Geometry
Insert DesignHZ-2
Insert Shape Code (SC)H - hexagonal
Insert Thickness — in (S)0.626"
Insert Thickness — mm (S)15.9 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6755488
EAN3603602908544
File Type Download
HZ/2 18-18 H7:333TN — Line Drawing PDF Download
