HZ/2 20-20 C11:333TN
HZ/2 20-20 C11:333TN

HZ/2 20-20 C11:333TN

UGC DOR6755489
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$365.36 CAD - $365.36 CAD
$365.36 CAD
$365.36 CAD - $365.36 CAD
$365.36 CAD

Vendu en lots de : 2

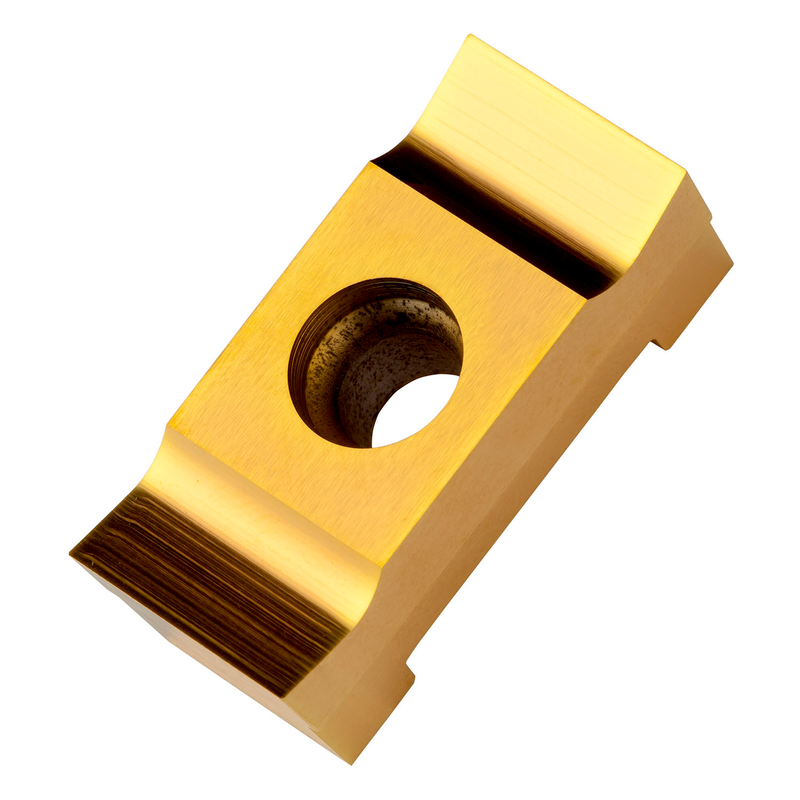

Plaquette de mortaisage et de brochage double face pour le brochage d'une largeur de 20 mm dans la classe de tolérance C11, en nuance HSS revêtu PVD 333TN dans les plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ-2…-18

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ/2 20-20 C11:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755489
Product FamilyHZ-2

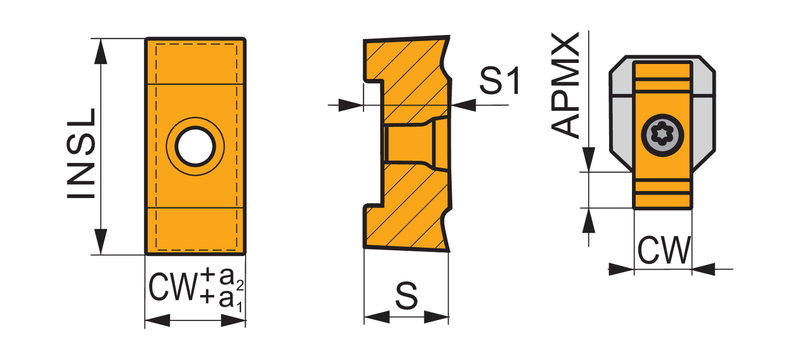

Insert Geometry
Insert DesignHZ-2
Insert Shape Code (SC)H - hexagonal
Insert Thickness — in (S)0.626"
Insert Thickness — mm (S)15.9 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number6755489
EAN3603602908551
File Type Download
HZ/2 20-20 C11:333TN — Line Drawing PDF Download
