TN 11NR140NPT:T8030
TN 11NR140NPT:T8030

TN 11NR140NPT:T8030

UGC DOR6755498
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.03 CAD - $34.03 CAD
$34.03 CAD
$34.03 CAD - $34.03 CAD
$34.03 CAD

Vendu en lots de : 5

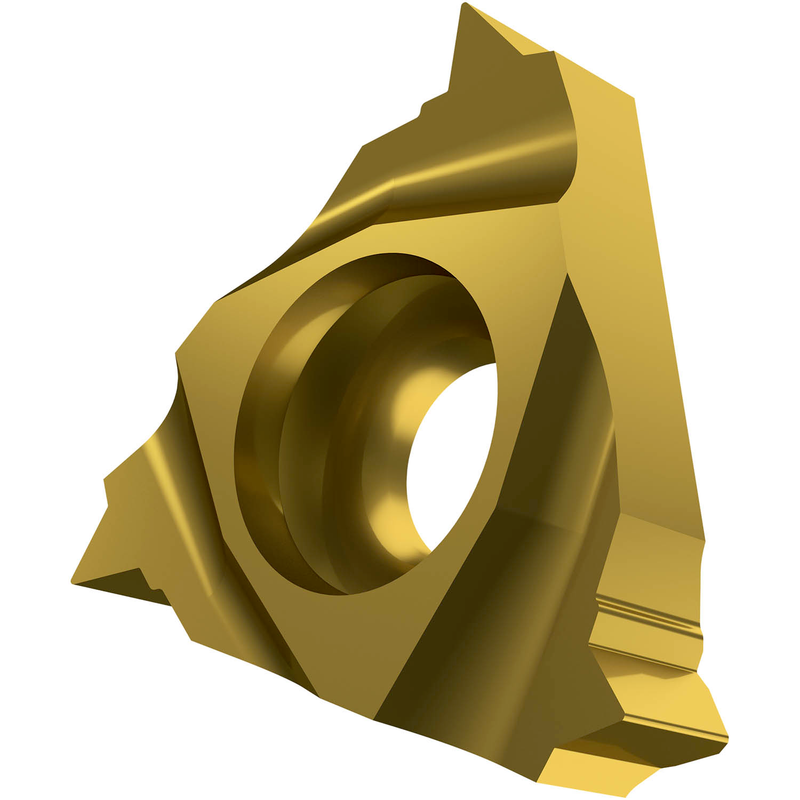

Insert à fileter simple face, triangulaire, avec un diamètre de cercle inscrit de 0,250", pour filetage intérieur NPT à droite de 14 filets par pouce, en carbure WC-Co à grains fins revêtu PVD T8030 dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 11NR140NPT:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755498
Product FamilyTN NPT INT

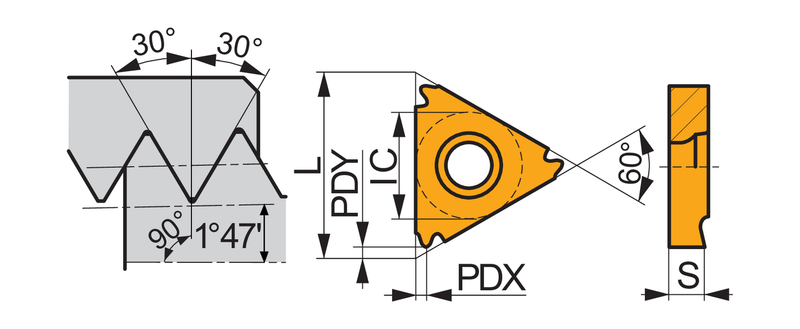

Insert Geometry
Insert DesignTN NPT INT
Insert Shape Code (SC)T - 60° triangulaire
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Threading
Threads per Inch (TPI)14.0
Tool Information
Reference Numbers
EDP Number6755498
EAN3603602908643
File Type Download
TN 11NR140NPT:T8030 — Line Drawing PDF Download
