TN 22NRN55:T8030
TN 22NRN55:T8030

TN 22NRN55:T8030

UGC DOR6755532
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.14 CAD - $47.14 CAD
$47.14 CAD
$47.14 CAD - $47.14 CAD
$47.14 CAD

Vendu en lots de : 5

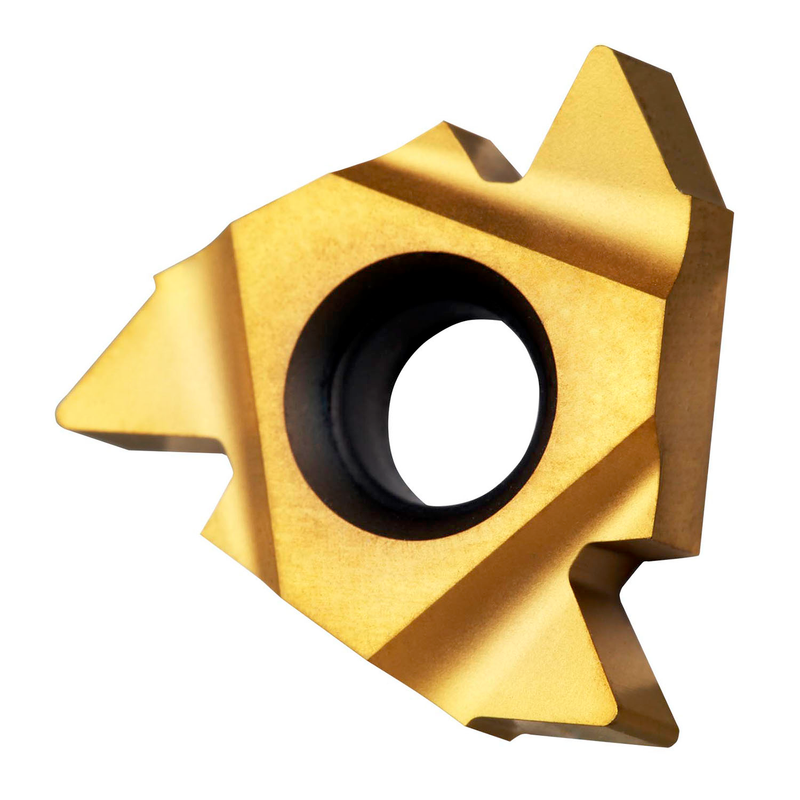

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 0,500", pour le profil partiel de filetage interne British Standard à droite de 7 à 5 filets par pouce, en carbure WC-Co à grains fins revêtu PVD T8030 dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 22NRN55:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755532
Product FamilyTN 55° PP INT

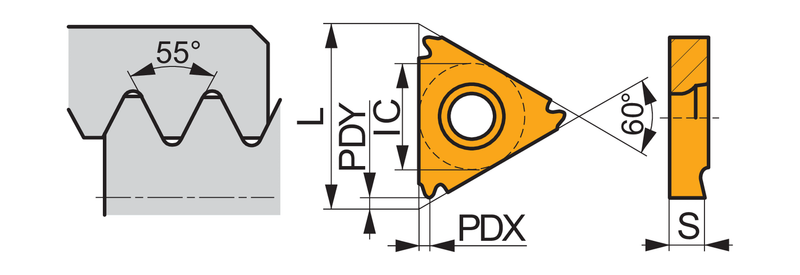

Insert Geometry
Insert DesignTN 55° IP INT
Insert Shape Code (SC)T - triangulaire 60° angle d'ouverture
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.185"
Insert Thickness — mm (S)4.71 mm
Tool Information
Reference Numbers
EDP Number6755532
EAN3603602908988
File Type Download
TN 22NRN55:T8030 — Line Drawing PDF Download
