TN 11NR150M-P1:T8030
TN 11NR150M-P1:T8030

TN 11NR150M-P1:T8030

UGC DOR6755545
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.74 CAD - $23.74 CAD
$23.74 CAD
$23.74 CAD - $23.74 CAD
$23.74 CAD

Vendu en lots de : 5

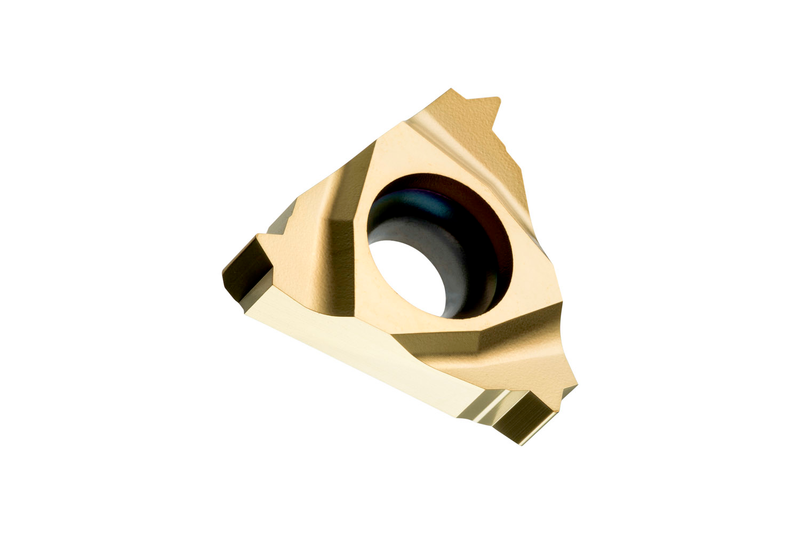

Plaquette de filetage unilatérale pressée, triangulaire avec un diamètre de cercle inscrit de 6,35 mm (0,250"), pour le filetage intérieur métrique ISO à droite avec un pas de 1,5", carbure WC-Co à grain fin revêtu PVD T8030 dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 11NR150M-P1:T8030
GradeT8030
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6755545
Product FamilyTN M INT

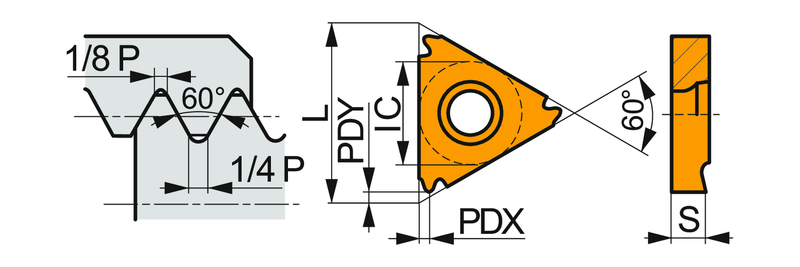

Insert Geometry
Insert DesignTN M INT
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Threading
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.059"
Tool Information
Reference Numbers
EDP Number6755545
EAN3603602909114
File Type Download
TN 11NR150M-P1:T8030 — Line Drawing PDF Download
