TN 11NR190W-P1:T8030
TN 11NR190W-P1:T8030

TN 11NR190W-P1:T8030

UGC DOR6755546
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.74 CAD - $23.74 CAD
$23.74 CAD
$23.74 CAD - $23.74 CAD
$23.74 CAD

Vendu en lots de : 5

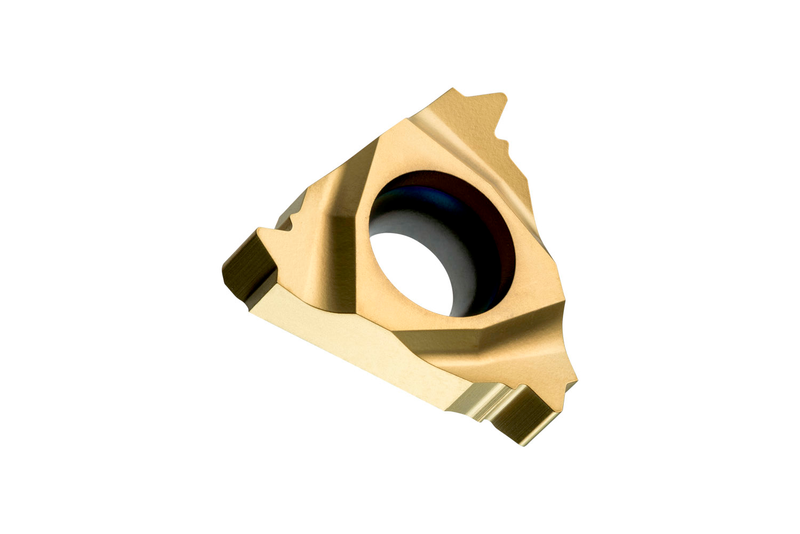

Plaquette de filetage unilatérale pressée, triangulaire avec un diamètre de cercle inscrit de 0,250", pour filetage interne BSW à droite avec 19 filets par pouce (TPI), en carbure WC-Co à grains fins revêtu PVD T8030 dans les plages de grades ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 11NR190W-P1:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755546
Product FamilyTN O INT

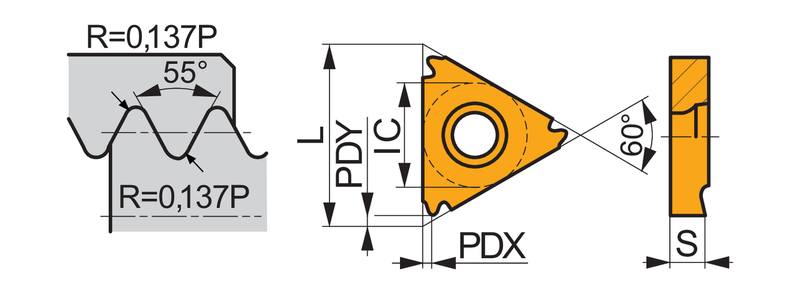

Insert Geometry
Insert DesignTN W INT
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Threading
Threads per Inch (TPI)19.0
Tool Information
Reference Numbers
EDP Number6755546
EAN3603602909121
File Type Download
TN 11NR190W-P1:T8030 — Line Drawing PDF Download
