TN 16ER200M-P1:T8030
TN 16ER200M-P1:T8030

TN 16ER200M-P1:T8030

UGC DOR6755559
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.13 CAD - $24.13 CAD
$24.13 CAD
$24.13 CAD - $24.13 CAD
$24.13 CAD

Vendu en lots de : 5

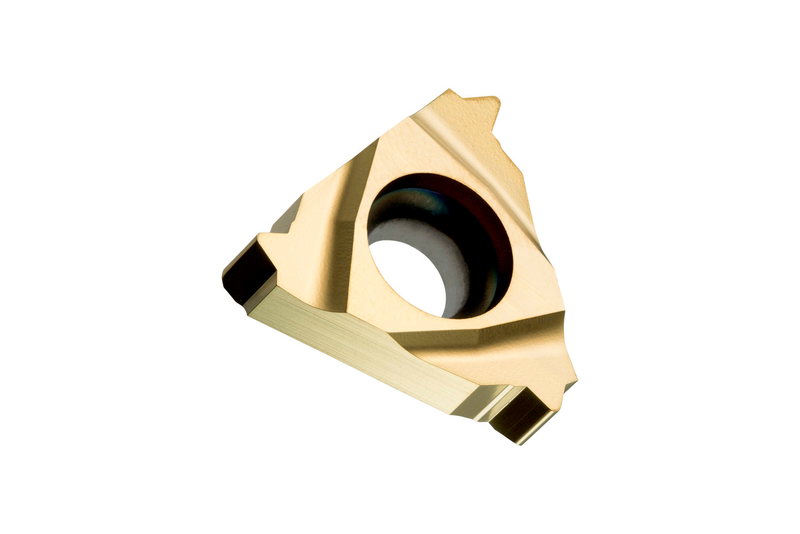

Plaquette de filetage simple face pressée, triangulaire avec un diamètre de cercle inscrit de 0,375", pour le filetage externe métrique ISO à droite avec un pas de 2", carbure WC-Co à grain fin revêtu PVD T8030 dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16ER200M-P1:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755559
Product FamilyTN M EXT
Insert Geometry
Insert DesignTN M EXT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Threading
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.079"
Tool Information
Reference Numbers
EDP Number6755559
EAN3603602909251
File Type Download

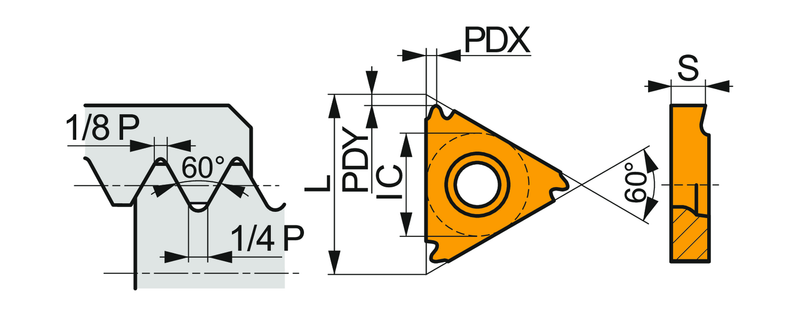

TN 16ER200M-P1:T8030 — Line Drawing PDF Download
