RCMX 2507MO-RM2:T9325
RCMX 2507MO-RM2:T9325

RCMX 2507MO-RM2:T9325

UGC DOR6755590
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.00 CAD - $50.00 CAD
$50.00 CAD
$50.00 CAD - $50.00 CAD
$50.00 CAD

Vendu en lots de : 10

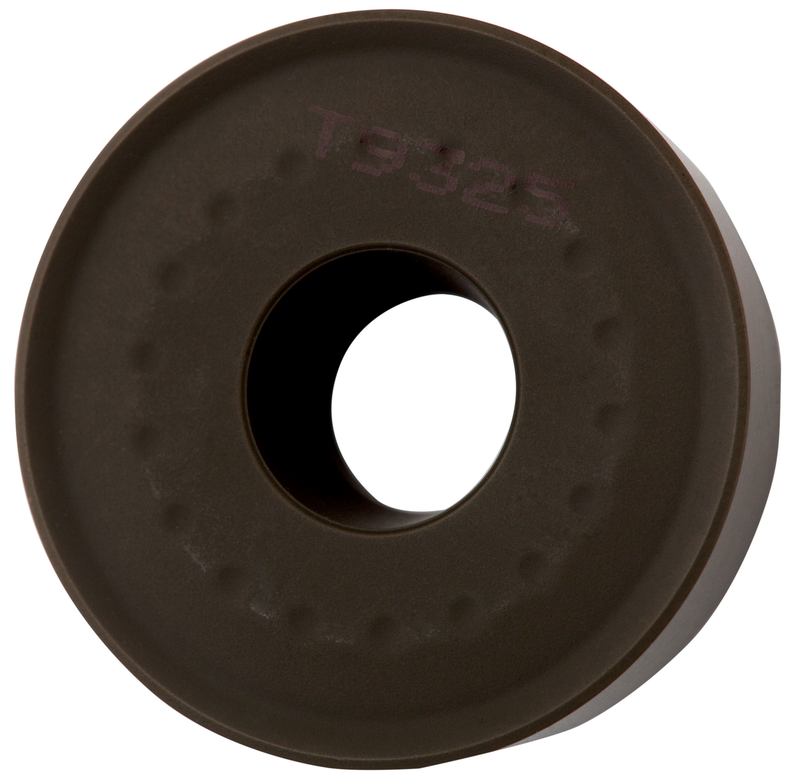

Plaquette de tournage positive de conception spéciale, ronde avec un dépouille de 7°, un diamètre de 25 mm, une épaisseur de 7,94 mm, une précision d'indexation selon la classe de tolérance ISO M, brise-copeaux RM2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 2507MO-RM2:T9325
GradeT9325
Chipbreaker (CBMD)2 millions de Roupies malaisiennes
Product Number6755590
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6755590
EAN3603602909565
File Type Download

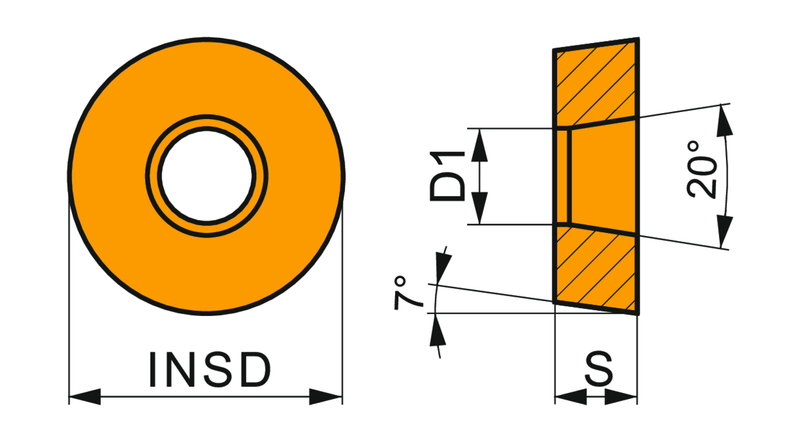

RCMX 2507MO-RM2:T9325 — Line Drawing PDF Download
