RCMT 3009MO-RR4:T9315
RCMT 3009MO-RR4:T9315

RCMT 3009MO-RR4:T9315

UGC DOR6755594
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.43 CAD - $81.43 CAD
$81.43 CAD
$81.43 CAD - $81.43 CAD
$81.43 CAD

Vendu en lots de : 5

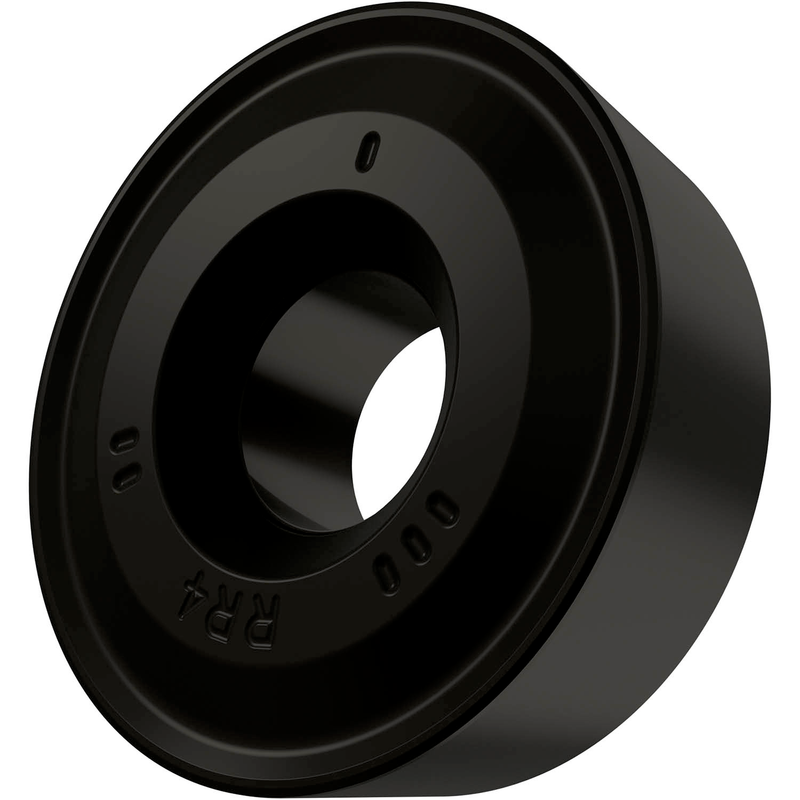

Plaquette de tournage positive simple face, ronde avec un angle de dégagement de 7°, un diamètre de 30 mm, une épaisseur de 9,52 mm, une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RR4, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05-P25, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 3009MO-RR4:T9315
GradeT9315
Chipbreaker (CBMD)RR4
Product Number6755594
Product FamilyMRCC
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - arrondi
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6755594
EAN3603602909602
File Type Download

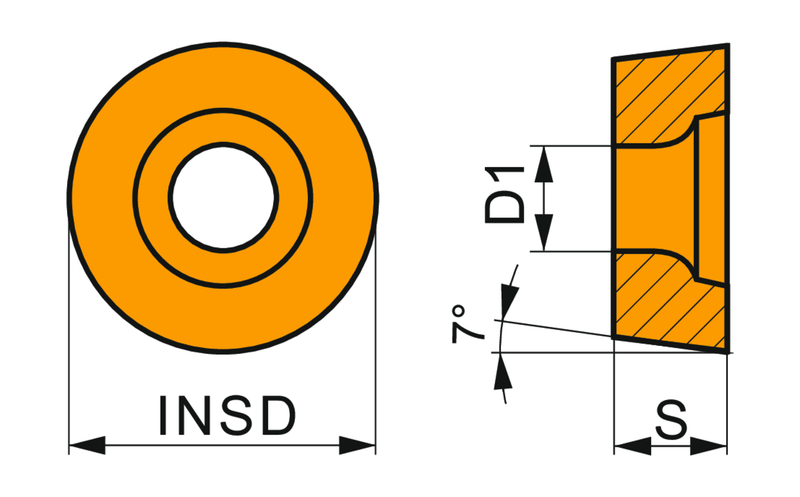

RCMT 3009MO-RR4:T9315 — Line Drawing PDF Download
