RCMX 3209MO-RM2:T9315
RCMX 3209MO-RM2:T9315

RCMX 3209MO-RM2:T9315

UGC DOR6755596
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.86 CAD - $87.86 CAD
$87.86 CAD
$87.86 CAD - $87.86 CAD
$87.86 CAD

Vendu en lots de : 5

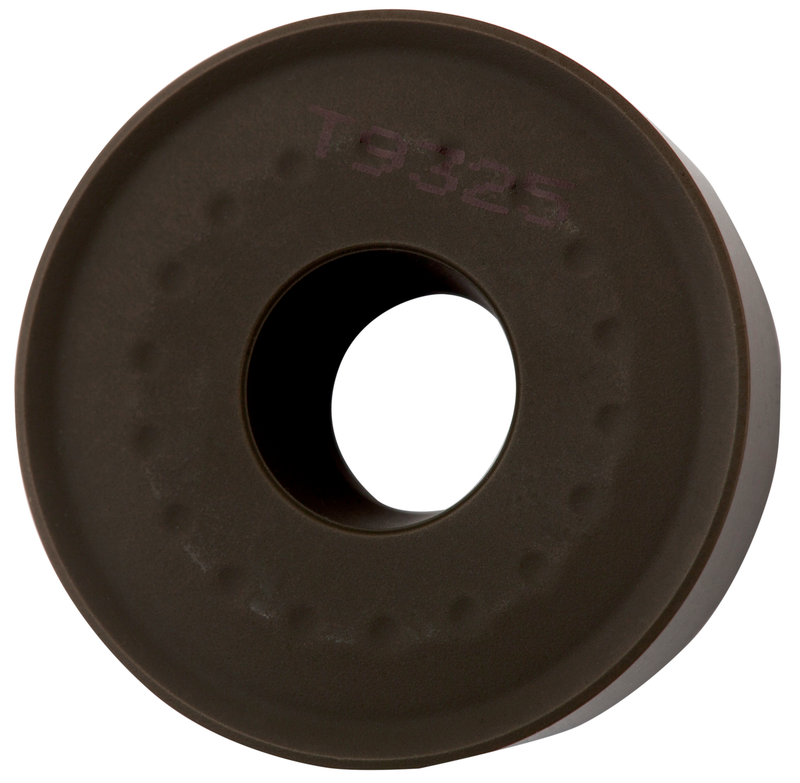

Plaquette positive de tournage de conception spéciale, ronde avec un dépouille de 7°, un diamètre de 32 mm, une épaisseur de 9,52 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux RM2, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05-P25, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 3209MO-RM2:T9315
GradeT9315
Chipbreaker (CBMD)RM2
Product Number6755596
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6755596
EAN3603602909626
File Type Download

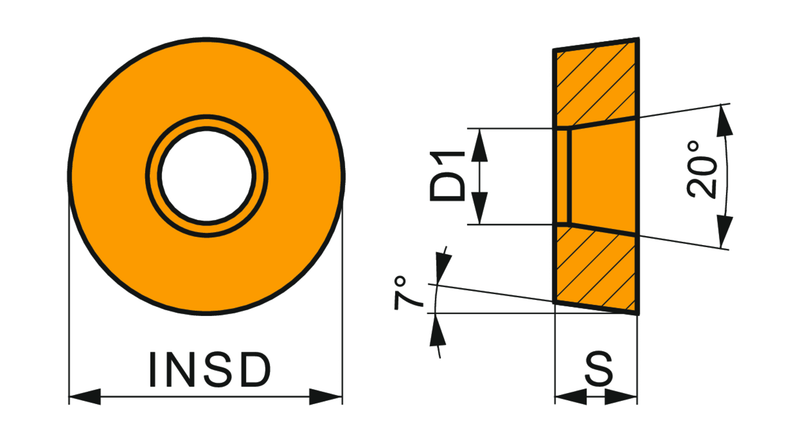

RCMX 3209MO-RM2:T9315 — Line Drawing PDF Download
