RCMX 3209MO-RM2:T9325
RCMX 3209MO-RM2:T9325

RCMX 3209MO-RM2:T9325

UGC DOR6755597
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.86 CAD - $87.86 CAD
$87.86 CAD
$87.86 CAD - $87.86 CAD
$87.86 CAD

Vendu en lots de : 5

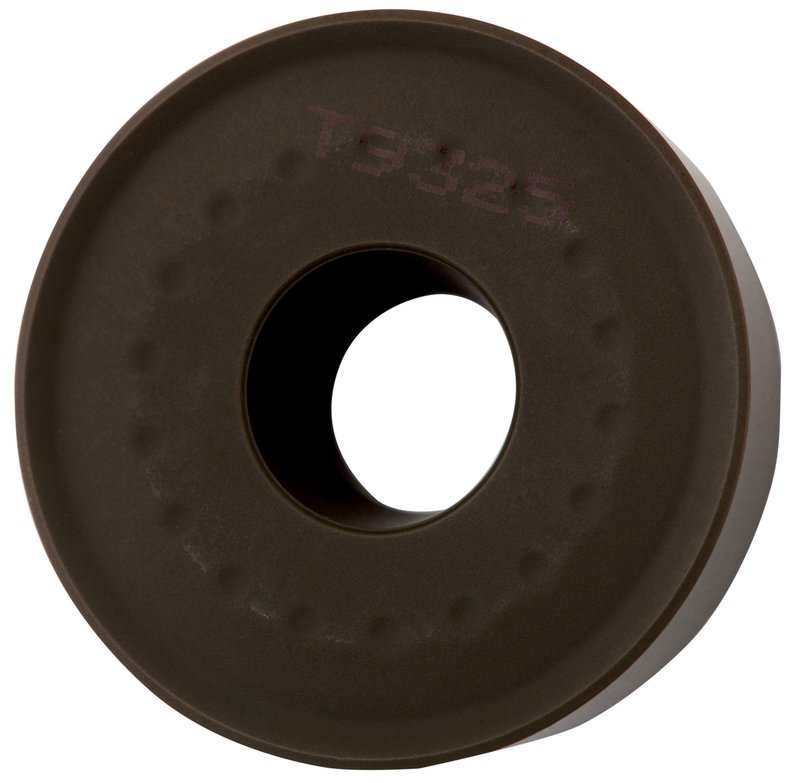

Plaquette positive ronde à coupe spéciale, angle de dépouille de 7°, diamètre de 32 mm, épaisseur de 9,52 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM2, en nuance T9325, un carbure WC-Co à gradient de fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 3209MO-RM2:T9325
GradeT9325
Chipbreaker (CBMD)RM2
Product Number6755597
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6755597
EAN3603602909633
File Type Download
RCMX 3209MO-RM2:T9325 — Line Drawing PDF Download
